Section 6 (Engine Control System - 3.5L)
>>
On Board Diagnostic (OBD) System
>>
Emission-Related Diagnostic Information
>>
Emission-Related Diagnostic Information Items
Emission-Related Diagnostic Information Items
WARNING:
This page is about a different variant/trim than selected.
NOTE:
Refer to
Fig 4
for footnote references in
Fig 1
-
Fig 4
.
x:
Applicable
-:
Not applicable

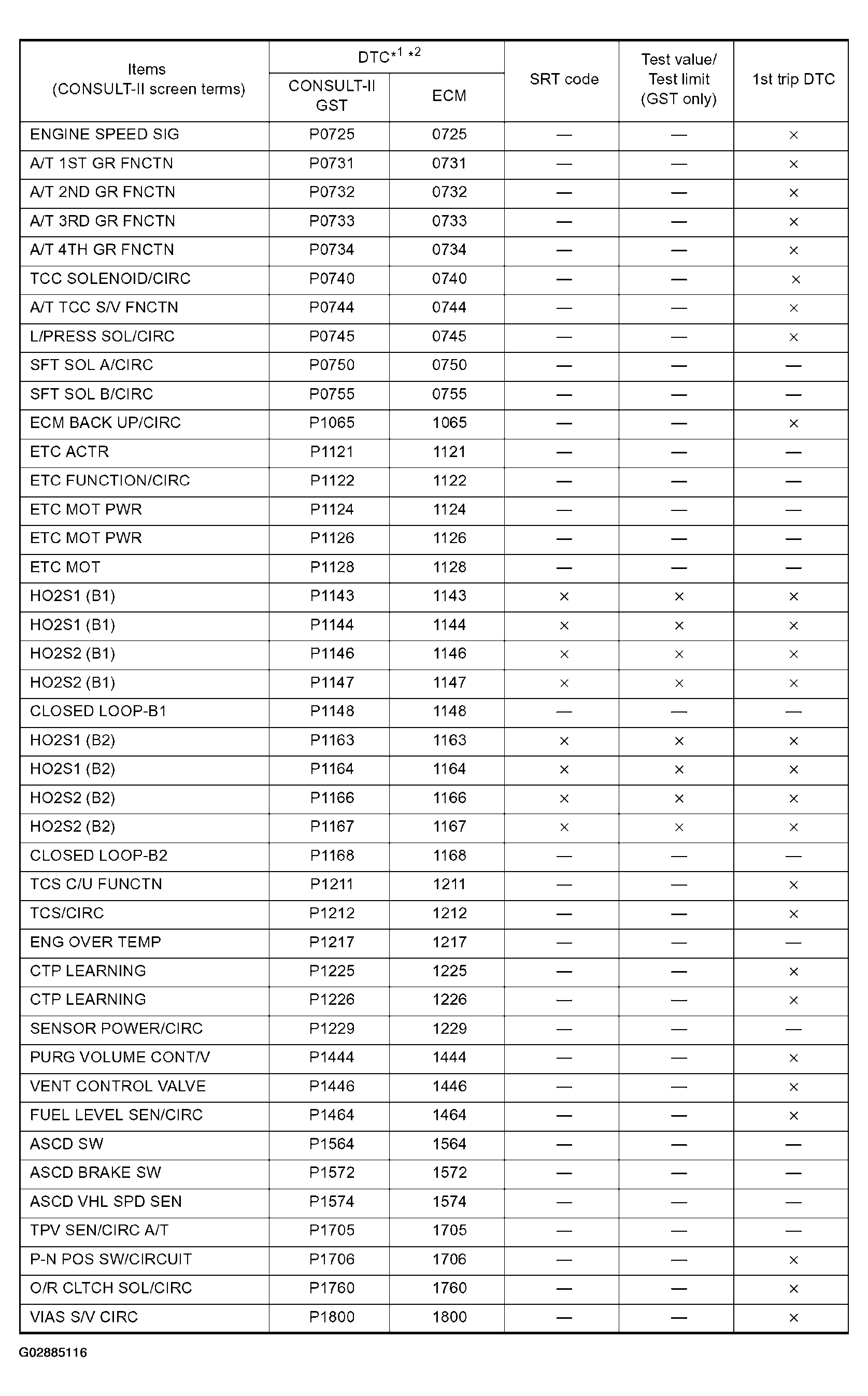

Fig 1: Emission-Related Diagnostic Information Items Chart (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

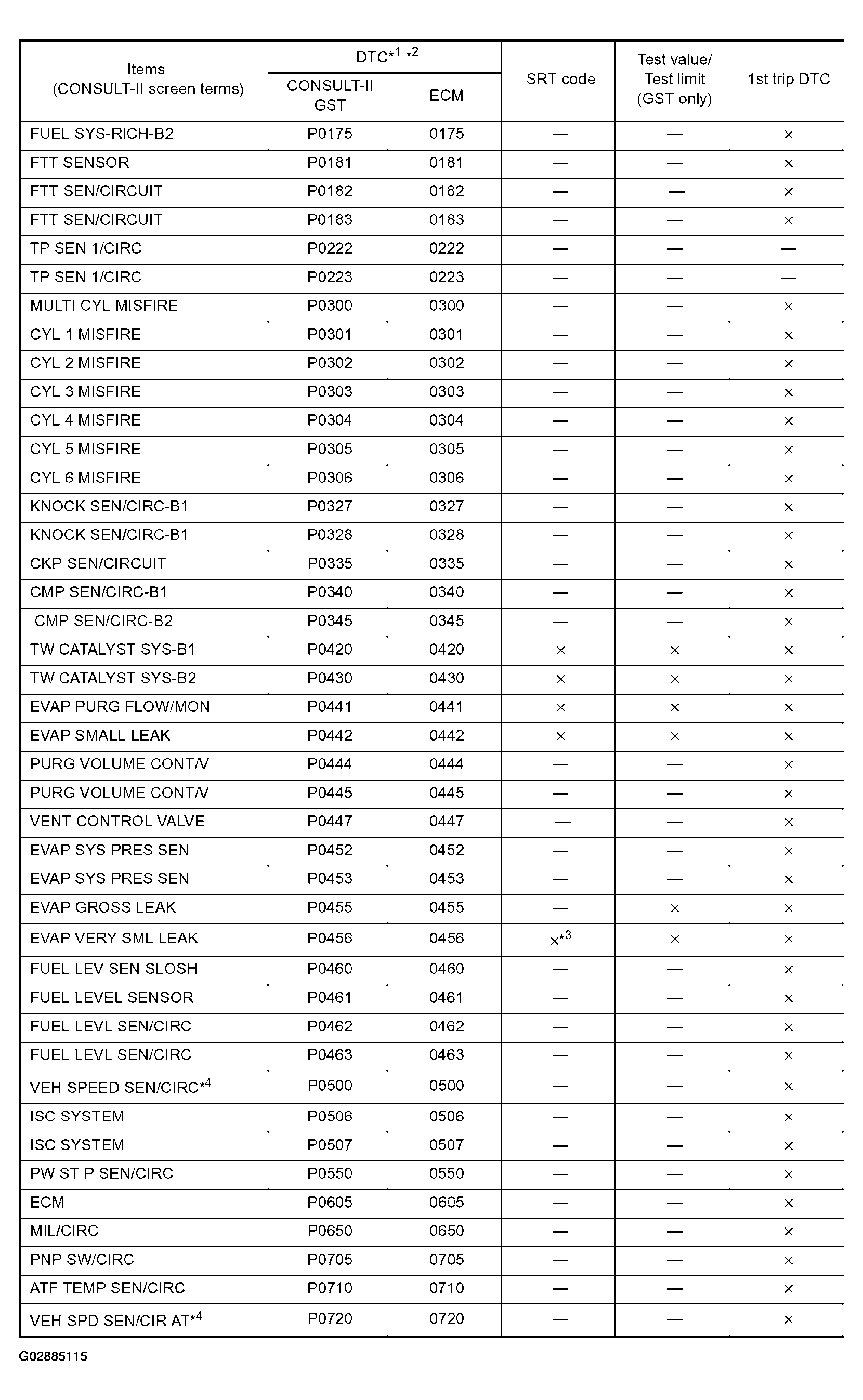

Fig 2: Emission-Related Diagnostic Information Items Chart (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

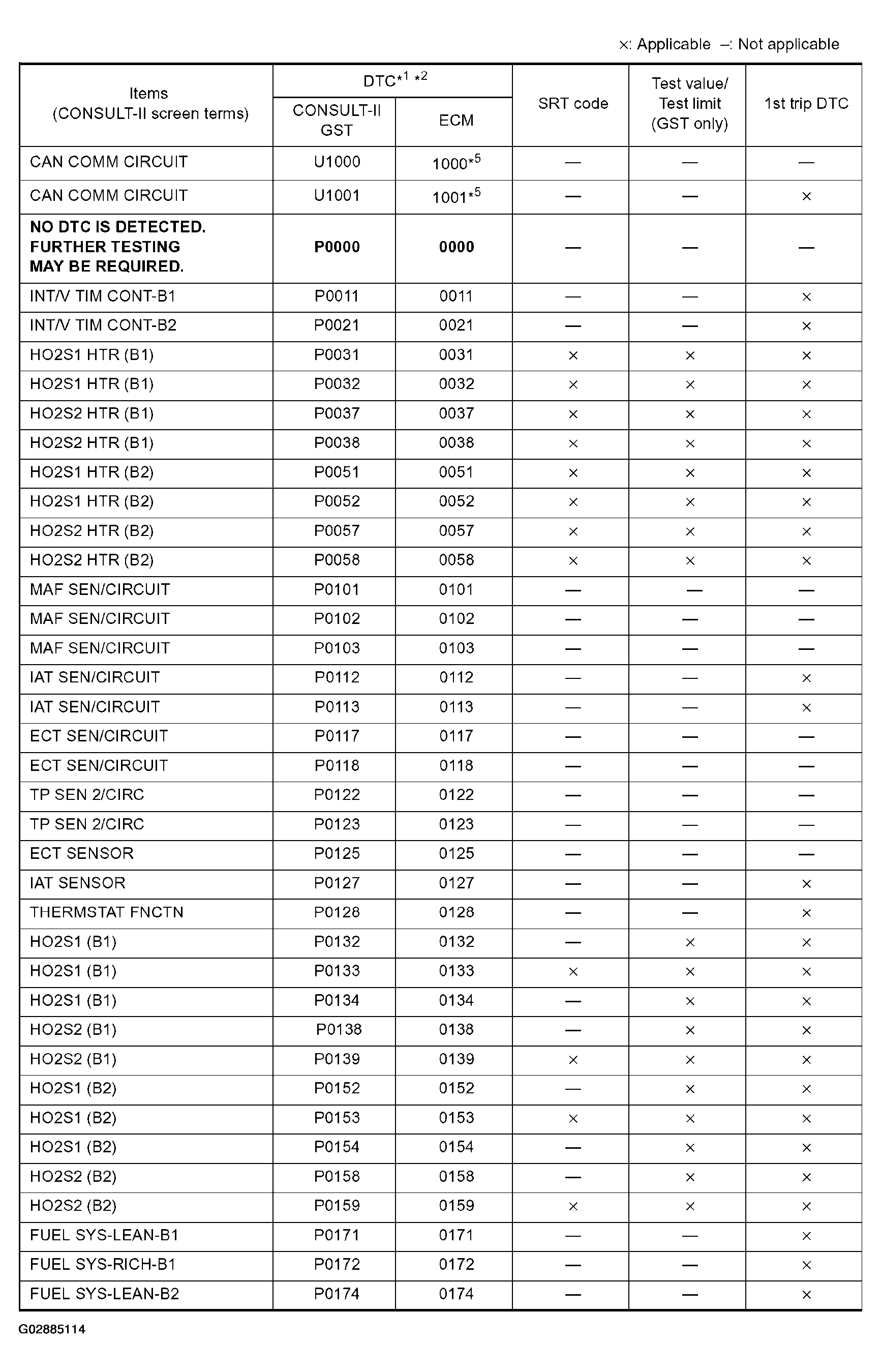

Fig 3: Emission-Related Diagnostic Information Items Chart (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

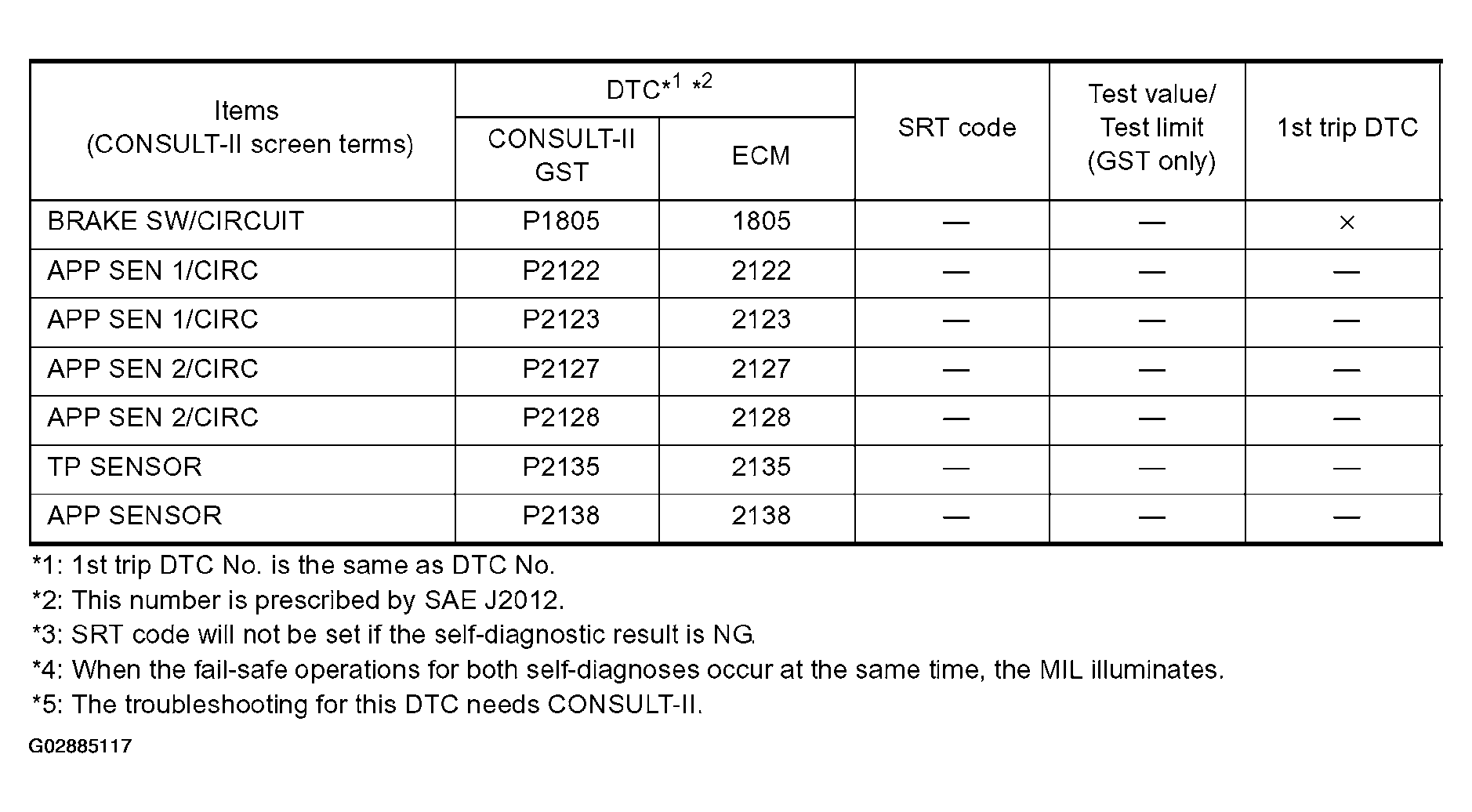

Fig 4: Emission-Related Diagnostic Information Items Chart (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
