Ignition Coil With Power Transistor

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch OFF.
Disconnect ignition coil harness connector.
Check resistance between ignition coil terminals as follows.

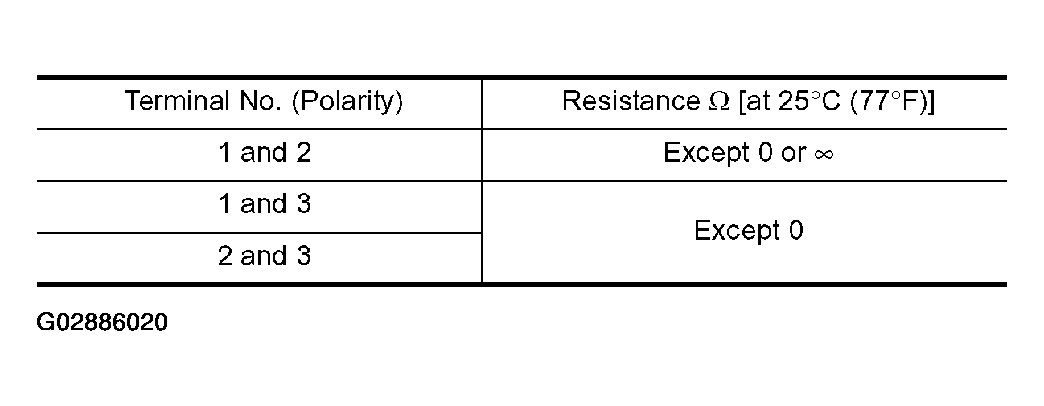

Fig 1: Terminal Resistance Table
Courtesy of NISSAN MOTOR CO., U.S.A.

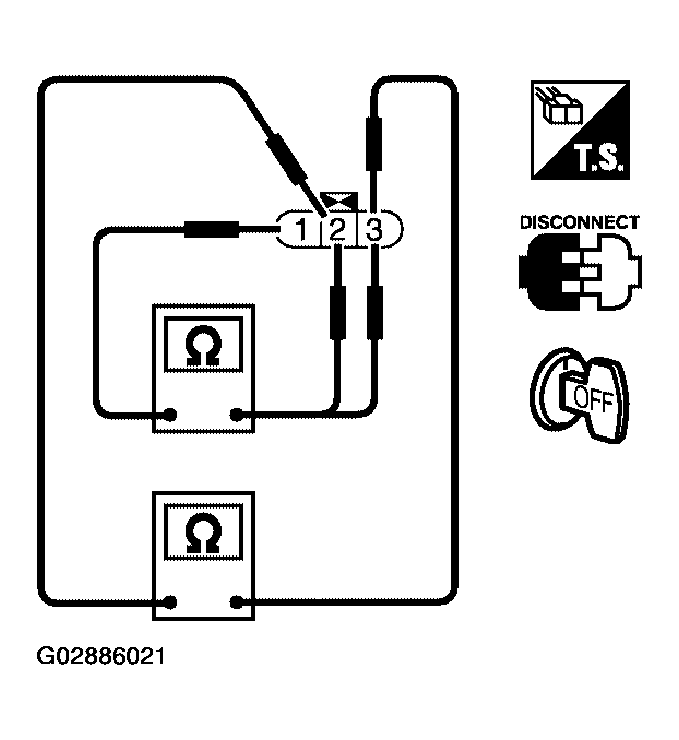

Fig 2: Checking Resistance Between Ignition Coil Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
