Component Inspection: Condenser
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF.
- Disconnect condenser harness connector.

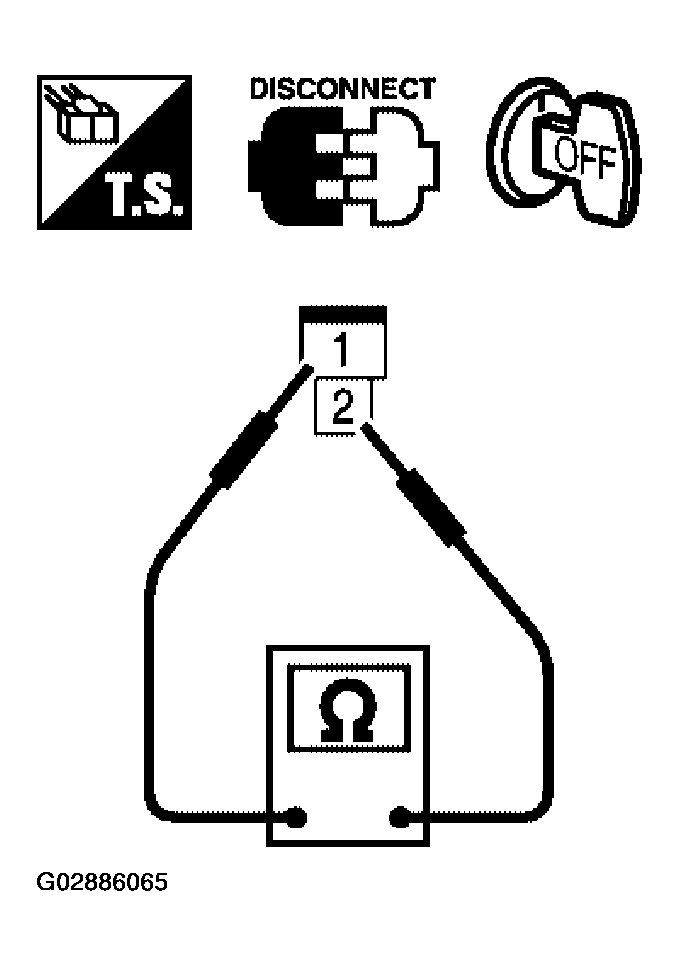

- Check resistance between condenser terminals 1 and 2.
RESISTANCE SPECIFICATION
| Resistance |
Above 1 MΩ at 25°C (77°F) |
Courtesy of NISSAN MOTOR CO., U.S.A.
