Section 6 (Engine Control System - 3.5L)
>>
Evaporative Emission System
>>
Removal and Installation
>>
EVAP Canister
EVAP Canister
WARNING:
This page is about a different variant/trim than selected.

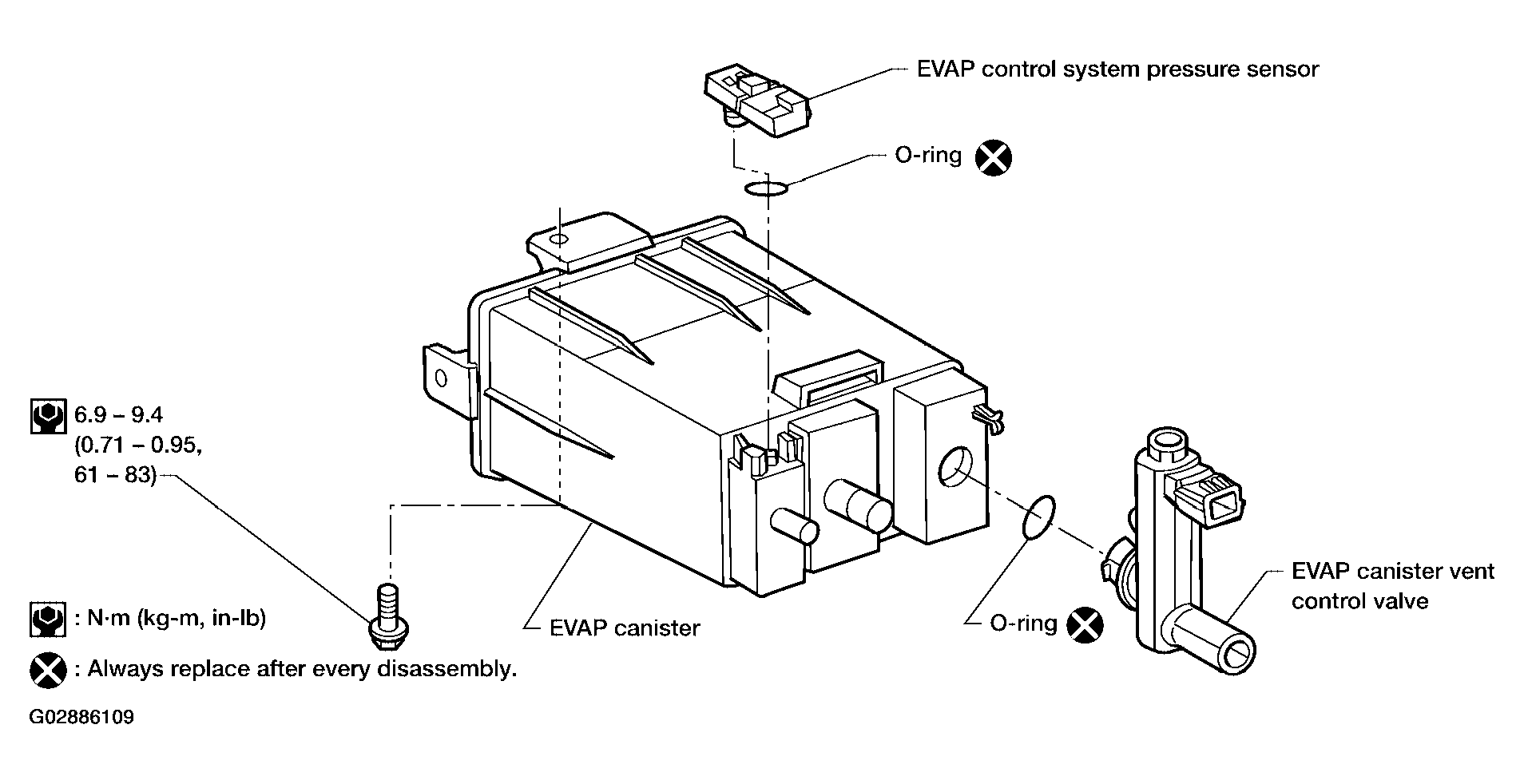

Tighten EVAP canister as shown in the figure.
Fig 1: Identifying EVAP Canister
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
