EVAP Canister Vent Control Valve

WARNING: This page is about a different variant/trim than selected.

Turn EVAP canister vent control valve counterclockwise.
Remove the EVAP canister vent control valve.
Do not reuse the O-ring, replace it with a new one.

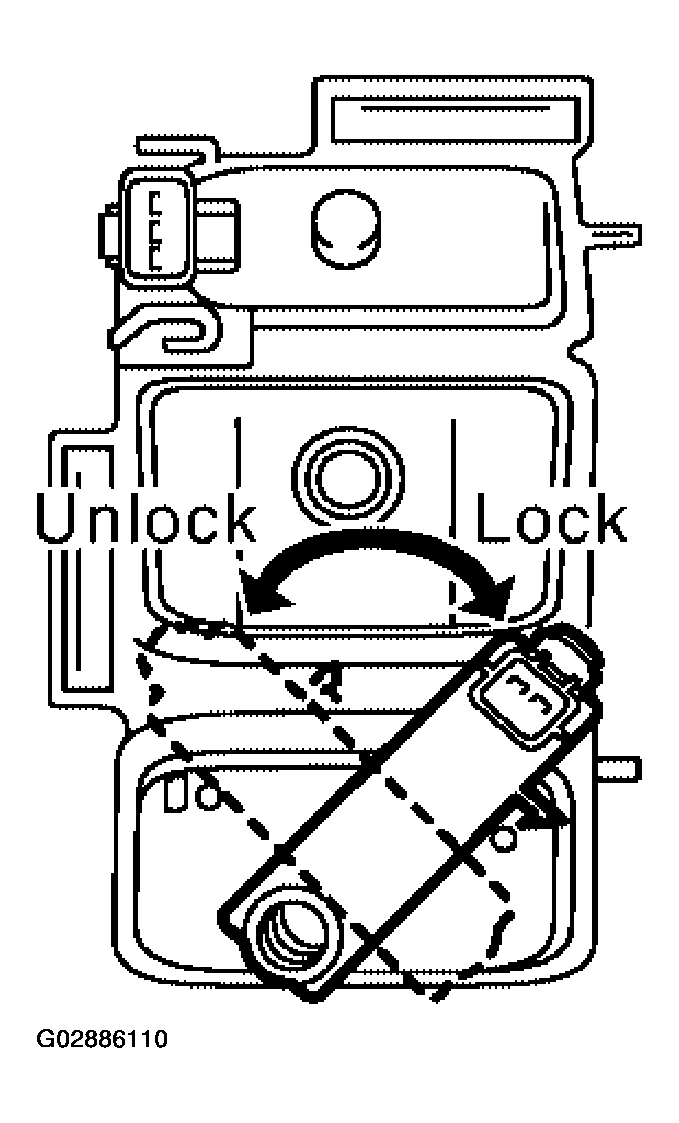

Fig 1: Identifying Lock Position Of EVAP Canister Vent Control Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
