Evaporative Emission Line Drawing

WARNING: This page is about a different variant/trim than selected.

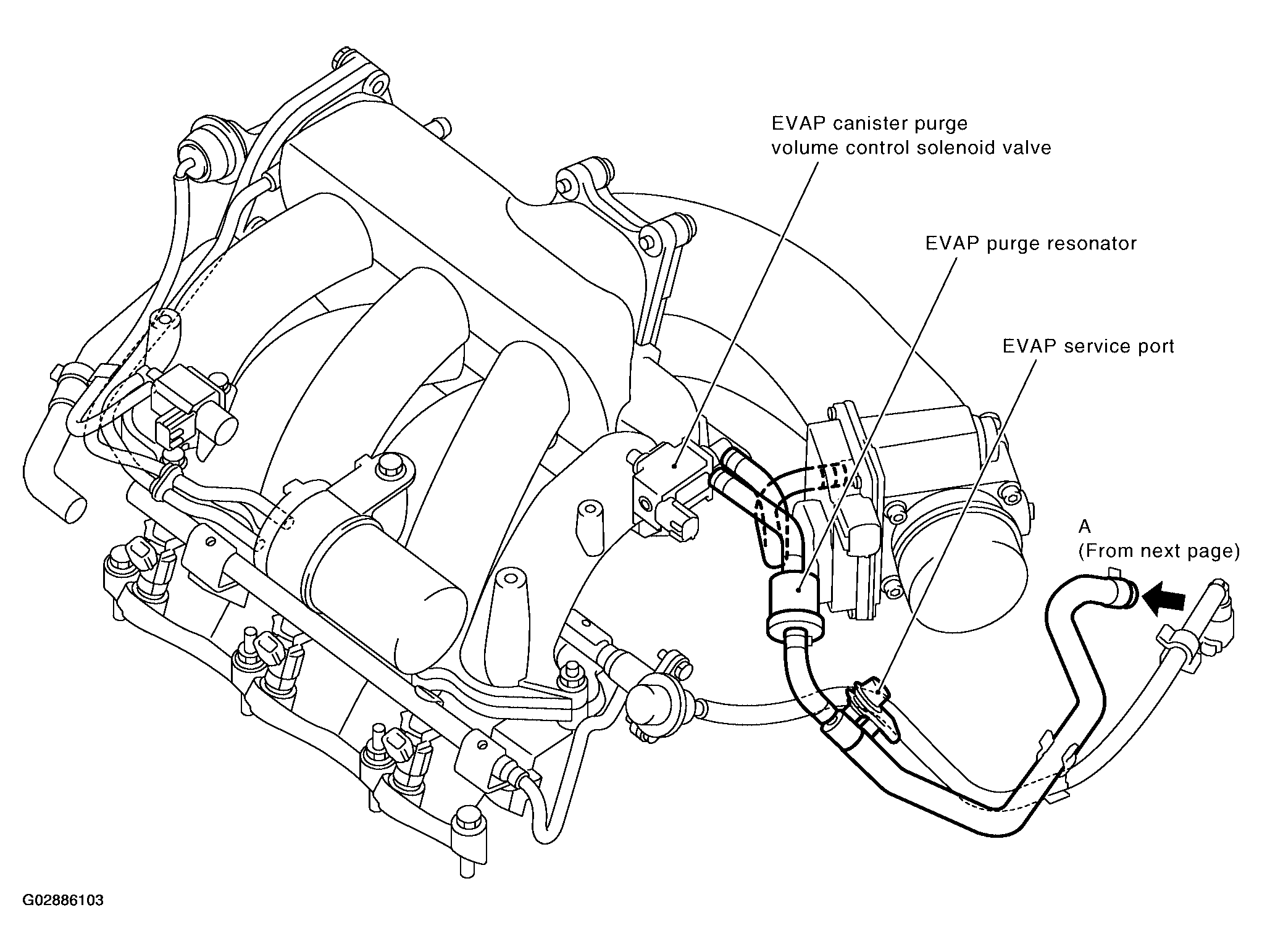

Fig 1: Evaporative Emission Line Drawing

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

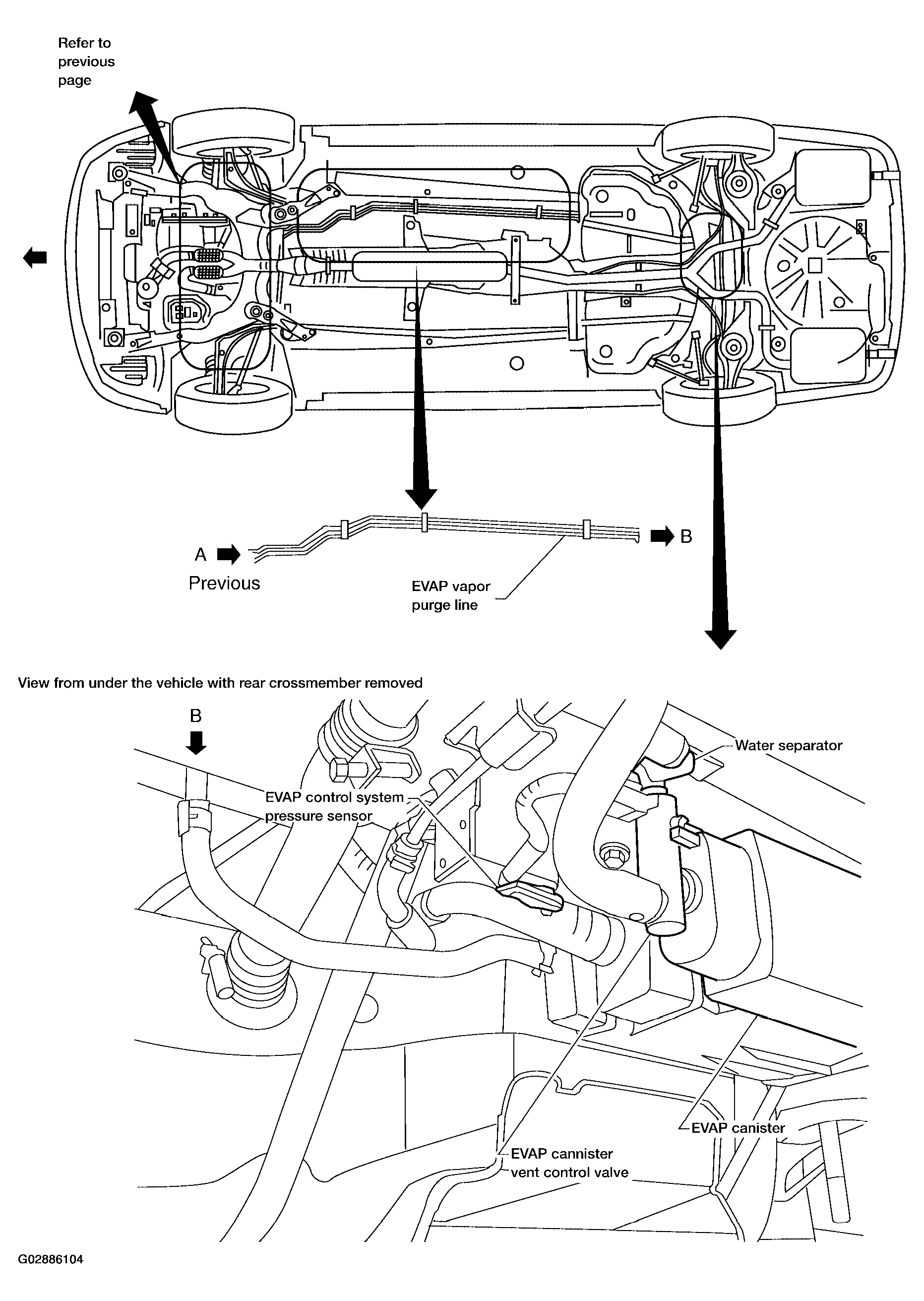

Fig 2: Identifying EVAP Canister Vent Control Valve

Courtesy of NISSAN MOTOR CO., U.S.A.
