EVAP Service Port

WARNING: This page is about a different variant/trim than selected.

Positive pressure is delivered to the EVAP system through the EVAP service port. If fuel vapor leakage in the EVAP system occurs, use a leak detector to locate the leak.

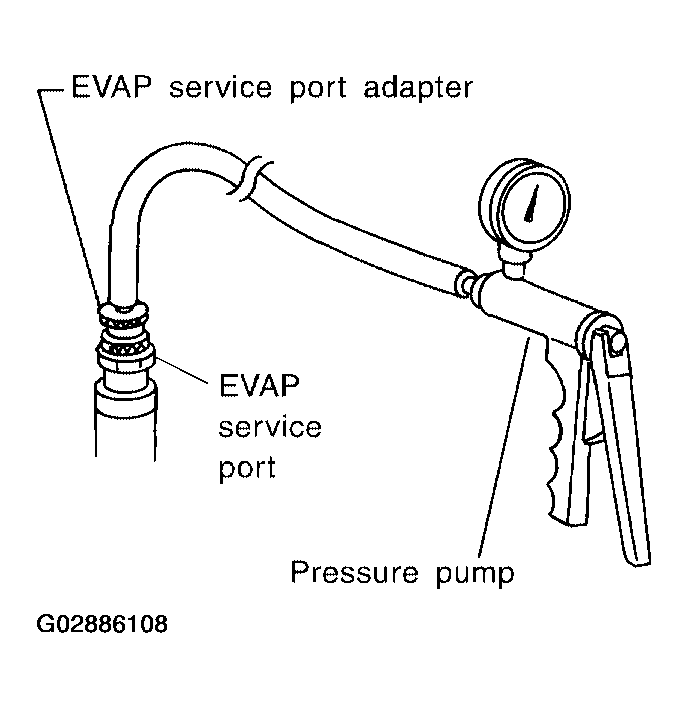

Fig 1: Connecting Pressure Pump To EVAP Service Port
G02886108Courtesy of NISSAN MOTOR CO., U.S.A.
