Section 6 (Engine Control System - 3.5L)
>>
Data Link Connector
>>
Wiring Diagram
Data Link Connector: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

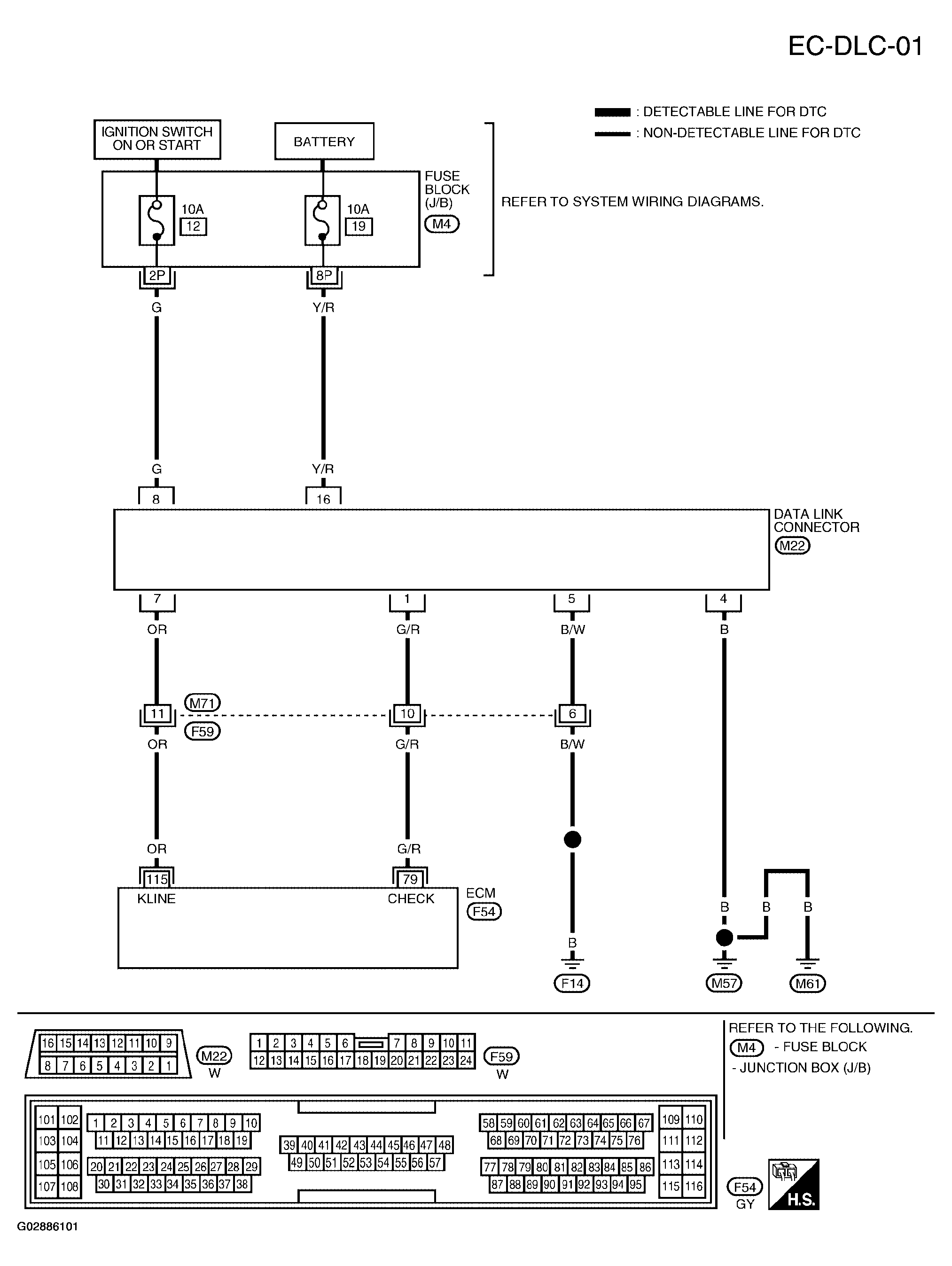

Fig 1: Wiring Diagram - EC-DLC-01
Courtesy of NISSAN MOTOR CO., U.S.A.
