Section 6 (Engine Control System - 3.5L)
>>
DTC U1000, U1001: Can Communication Line
>>
Wiring Diagram
DTC U1000, U1001: Can Communication Line: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

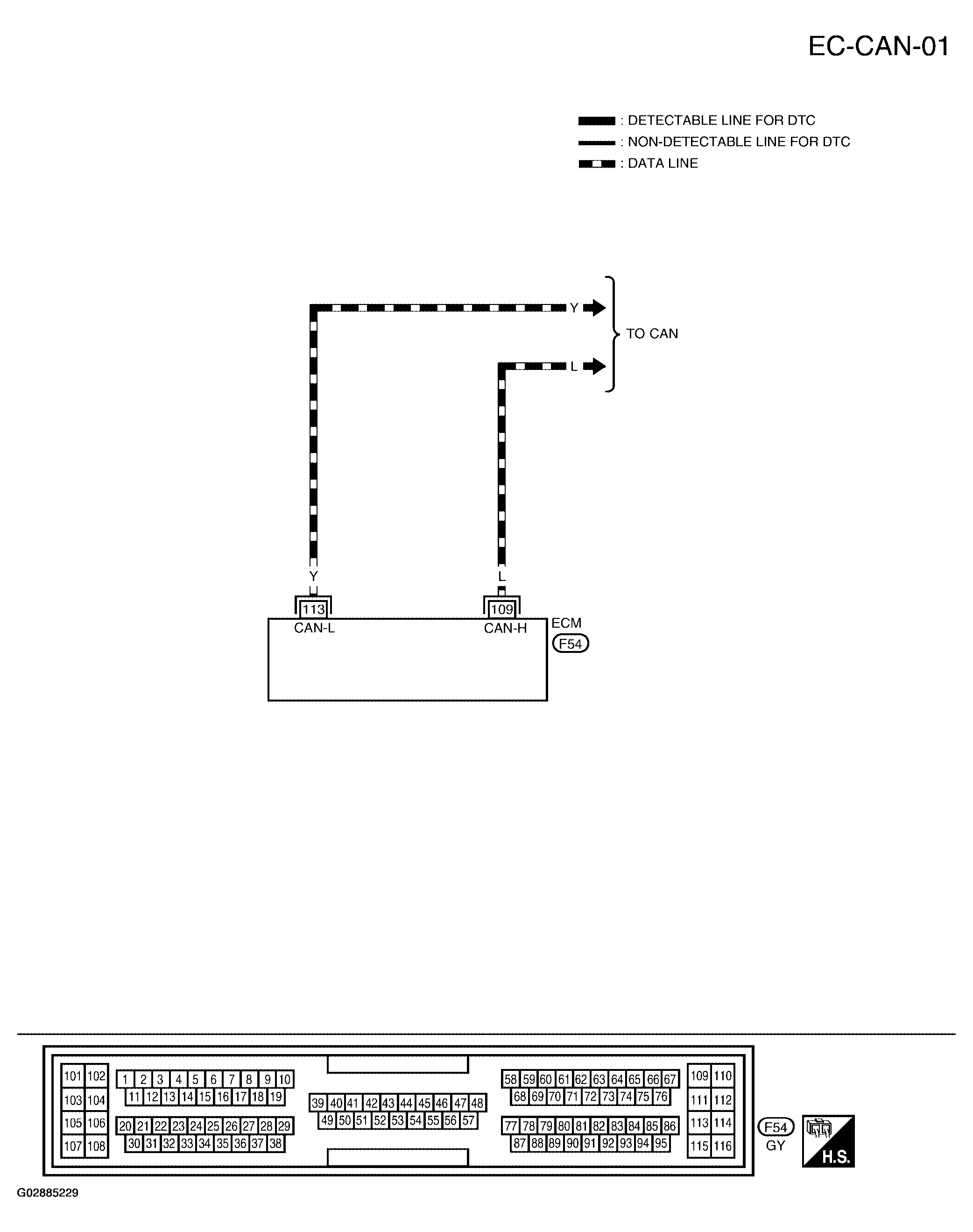

Fig 1: Wiring Diagram - EC-CAN-01
Courtesy of NISSAN MOTOR CO., U.S.A.
