With Consult-II

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch ON.
  2. Fully depress the brake pedal for at least 5 seconds.
  3. Erase the DTC with CONSULT-II.
  4. Select "DATA MONITOR" mode with CONSULT-II.
  5. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

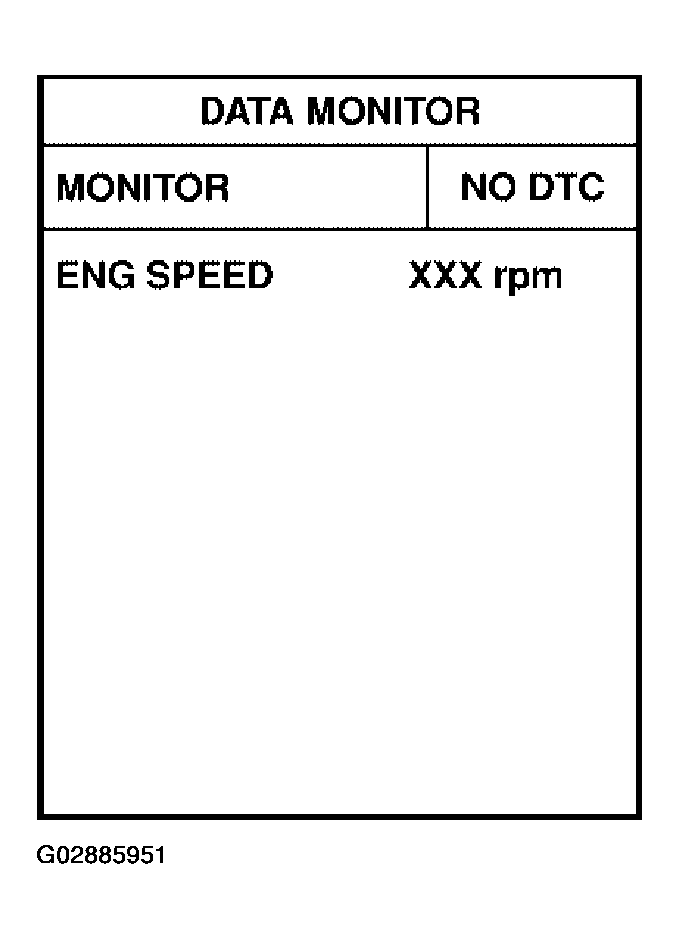

    Fig 1: CONSULT-II Diagnosis Function Display
    G02885951Courtesy of NISSAN MOTOR CO., U.S.A.
