Stop Lamp Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect stop lamp switch harness connector.

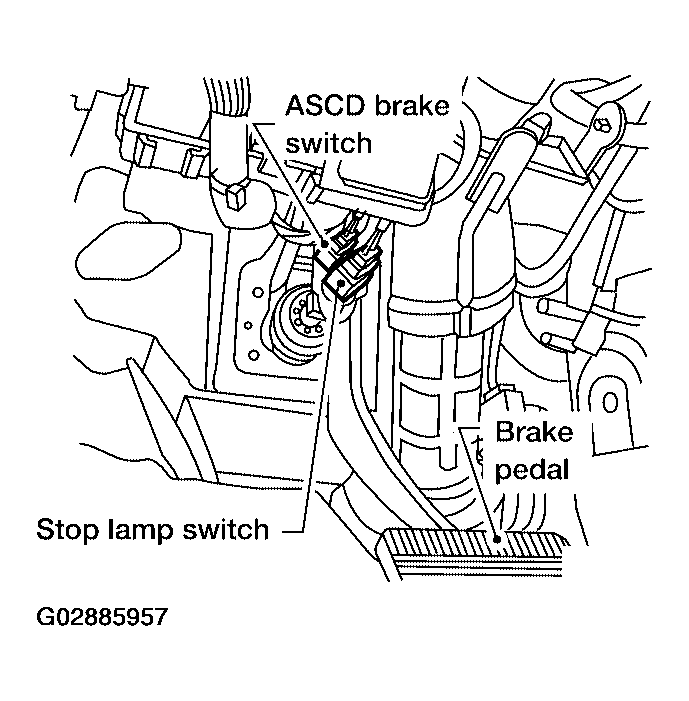

    Fig 1: Disconnecting Stop Lamp Switch Harness Connector
    G02885957Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    CONDITIONS CONTINUITY SPECIFICATION

    Conditions Continuity
    Brake pedal fully released Should not exist.
    Brake pedal depressed Should exist.
  3. If NG, replace stop lamp switch.

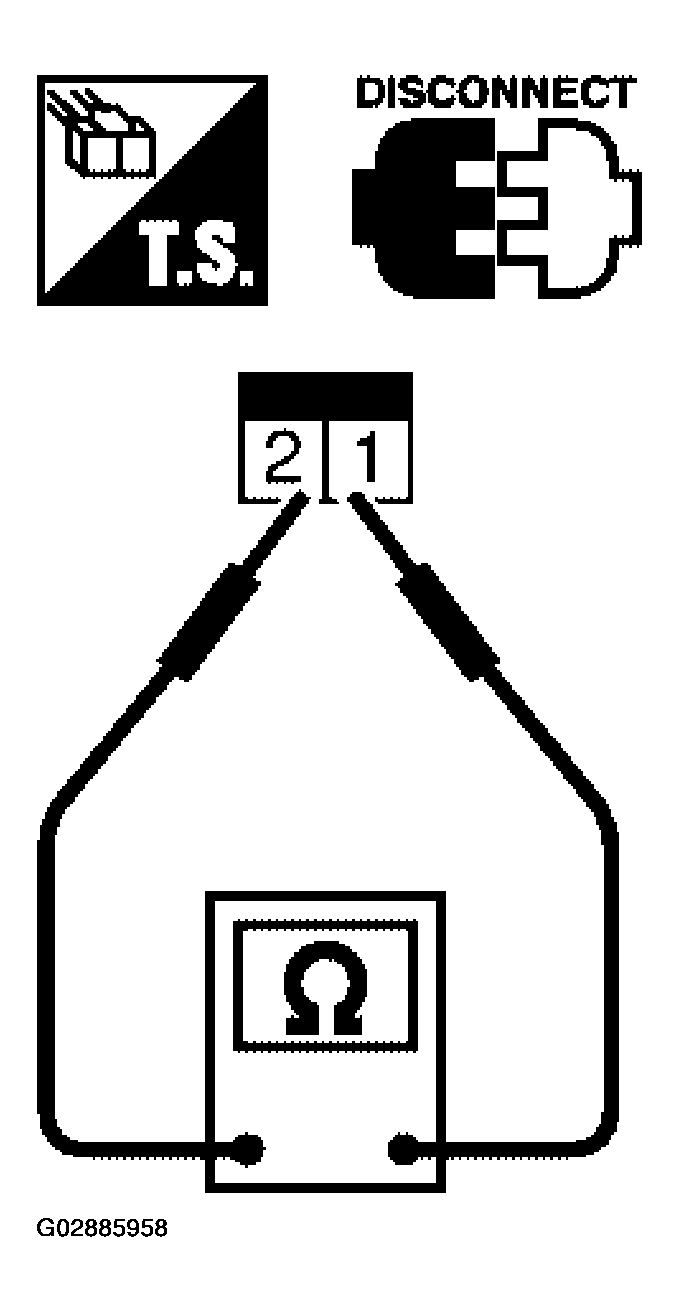

    Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2
    G02885958Courtesy of NISSAN MOTOR CO., U.S.A.
