With GST

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch ON.
Check voltage between ECM terminal 44 (PNP switch signal) and ground under the following conditions.

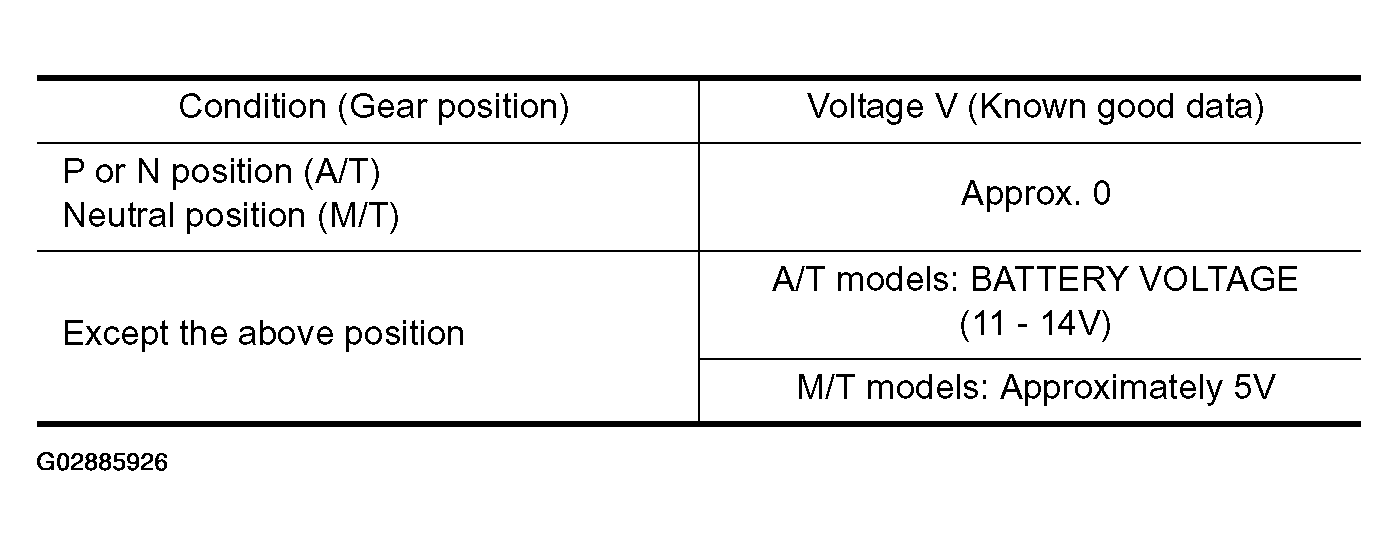

Fig 1: Voltage Table
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, go to "DIAGNOSTIC PROCEDURE ".

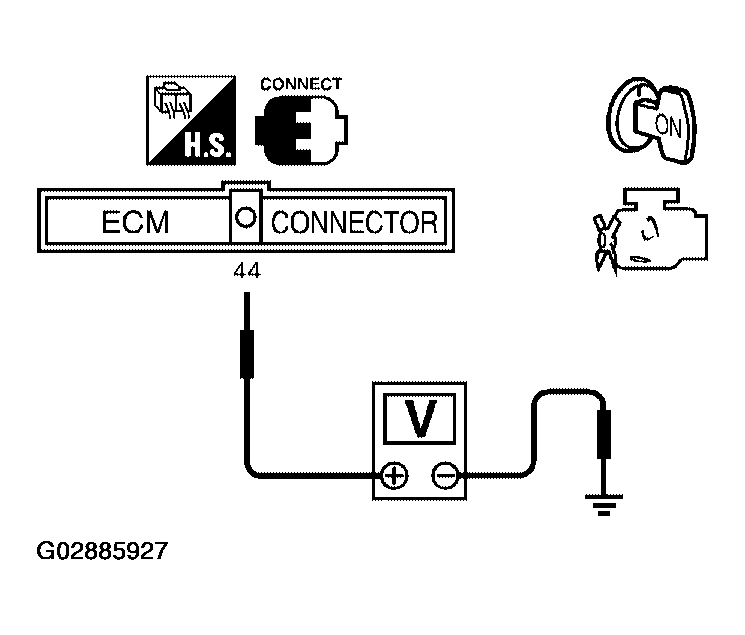

Fig 2: Checking Voltage Between Terminal 44 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
