On Board Diagnosis Logic

WARNING: This page is about a different variant/trim than selected.

This self-diagnosis has the one trip detection logic.

The MIL will not light up for this self-diagnosis.

NOTE: If DTC P 1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to DTC P0605 ECM

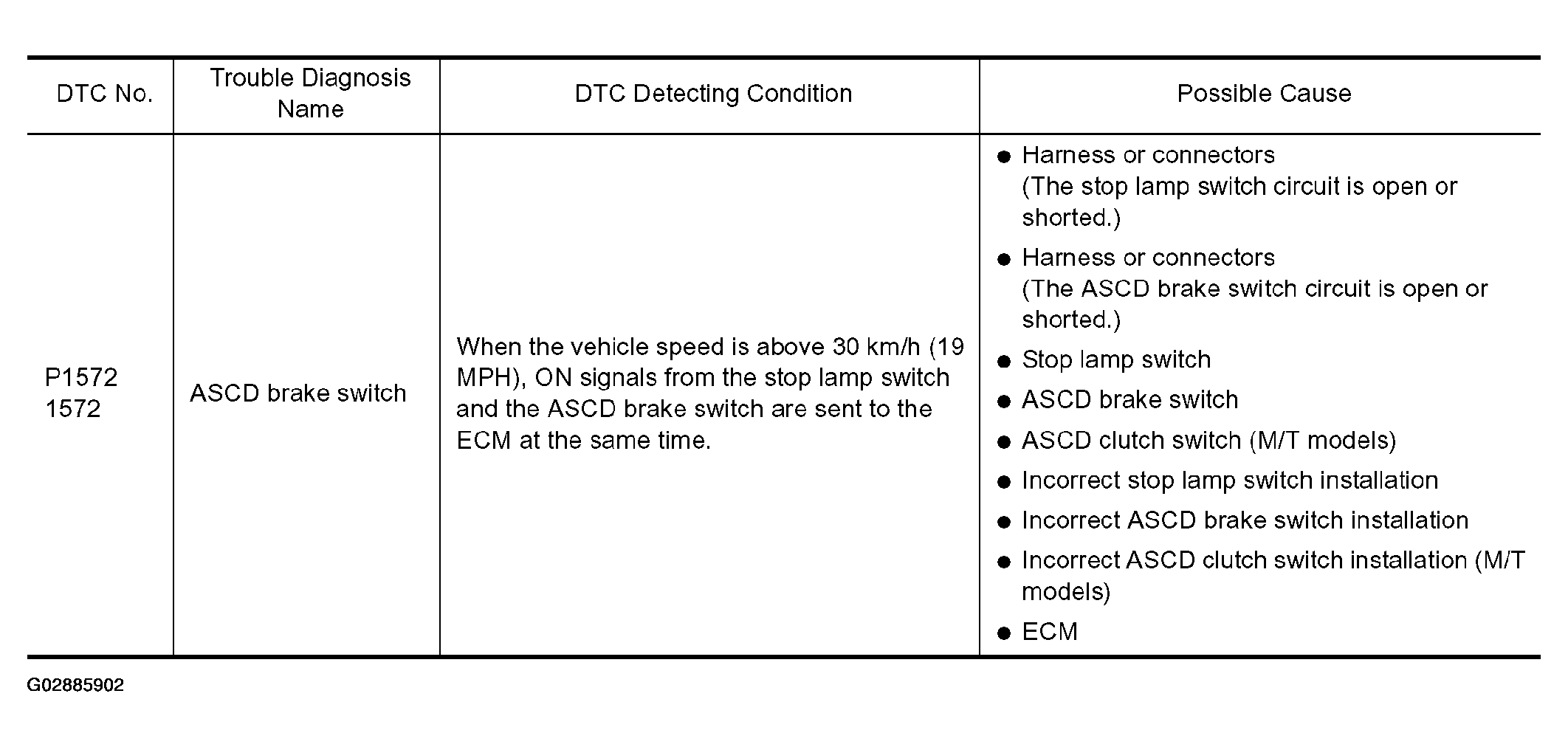

Fig 1: DTC Detecting Condition Table

Courtesy of NISSAN MOTOR CO., U.S.A.
