Diagnostic Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK OVERALL FUNCTION-I

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-II.
    3. Check "BRAKE SW1" indication under the following conditions.

      A/T models

      A/T MODELS CONDITION SPECIFICATION

      CONDITION INDICATION
      When brake pedal is depress OFF
      When brake pedal is fully released ON

      M/T models

      M/T MODELS CONDITION SPECIFICATION

      CONDITION INDICATION
      When clutch pedal or brake pedal is depressed OFF
      When clutch pedal and brake pedal are fully released ON

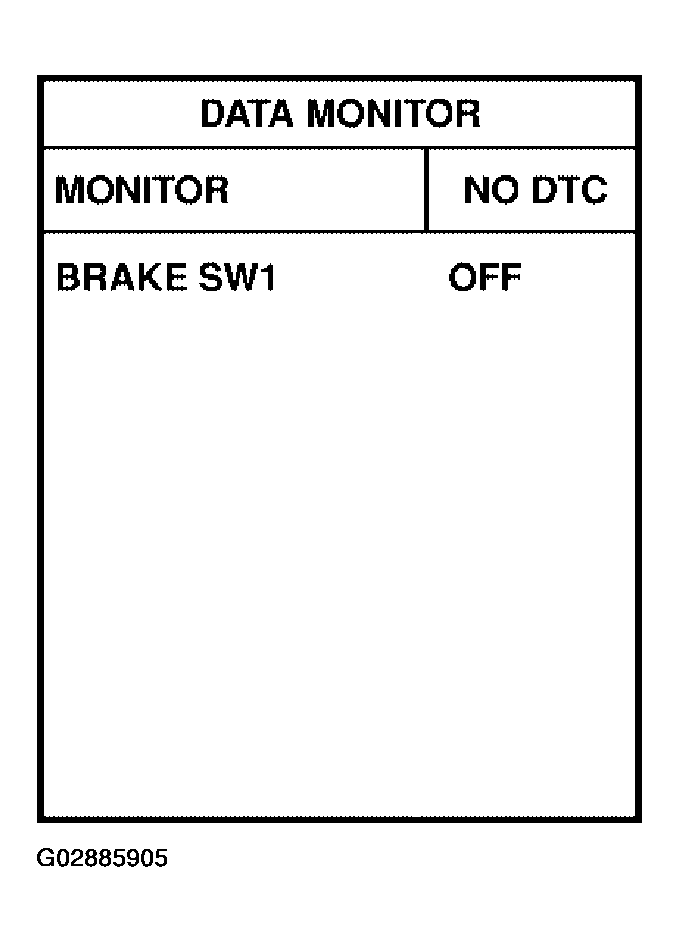

      Fig 1: CONSULT-II Diagnosis Function Display
      G02885905Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 59 and ground under the following conditions.

      A/T models

      A/T MODELS CONDITION SPECIFICATION

      CONDITION VOLTAGE
      When brake pedal is depress Approximately 0V
      When brake pedal is fully released Battery voltage

      M/T models

      M/T MODELS CONDITION SPECIFICATION

      CONDITION VOLTAGE
      When clutch pedal or brake pedal is depressed Approximately 0V
      When clutch pedal and brake pedal are fully released Battery voltage

    OK or NG

    1. OK : GO TO 2.
    2. NG (M/T models) : GO TO  3.
    3. NG (A/T models) : GO TO  8.

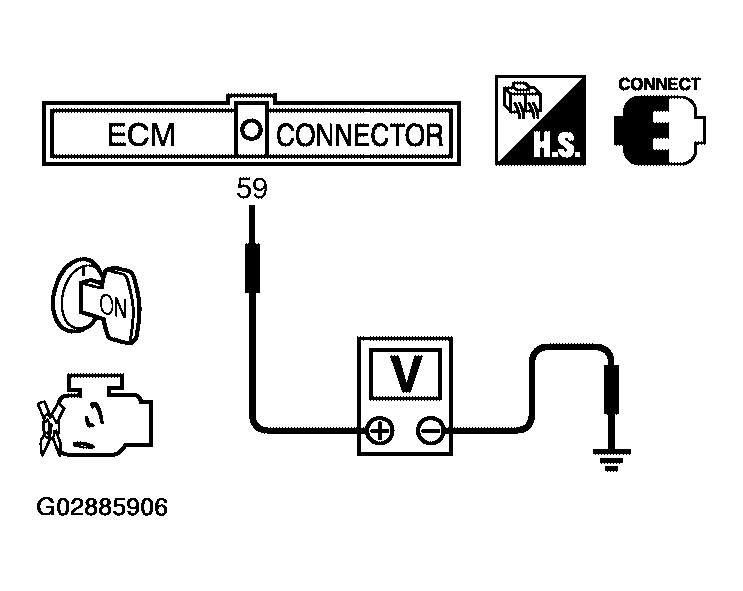

      Fig 2: Checking Voltage Between Terminal 59 And Ground
      G02885906Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK OVERALL FUNCTION-II

    With CONSULT-II

    Check "BRAKE SW2" indication in "DATA MONITOR" mode.

    CONDITION SPECIFICATION

    CONDITION INDICATION
    When brake pedal is released OFF
    When brake pedal is depressed ON
    Fig 3: CONSULT-II Diagnosis Function Display
    G02885907Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between ECM terminal 55 and ground under the following conditions.

    VOLTAGE CONDITION SPECIFICATION

    CONDITION VOLTAGE
    When brake pedal is released Approximately 0V
    When brake pedal is depressed Battery voltage
    Fig 4: Checking Voltage Between Terminal 55 And Ground
    G02885908Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO  18.
    2. NG : GO TO  13.
  3. CHECK ASCD CLUTCH SWITCH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD brake switch harness connector.
    3. Turn ignition switch ON.
      Fig 5: Identifying ASCD Clutch Switch
      G02885909Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ASCD brake switch terminal 1 and ground under the following conditions with CONSULT-II or tester.
      VOLTAGE CONDITION SPECIFICATION

      CONDITION VOLTAGE
      When clutch pedal is released Battery voltage
      When clutch pedal is depressed Approx. 0V

    OK or NG

    1. OK : GO TO  10.
    2. NG : GO TO 4.

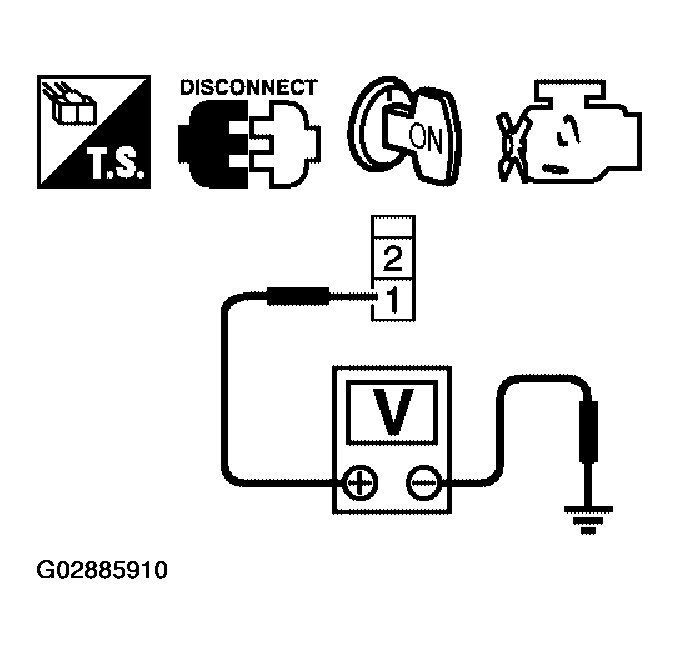

      Fig 6: Checking Voltage Between ASCD Brake Switch Terminal 1 And Ground
      G02885910Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK ASCD CLUTCH SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD clutch switch harness connector.
    3. Turn ignition switch ON.

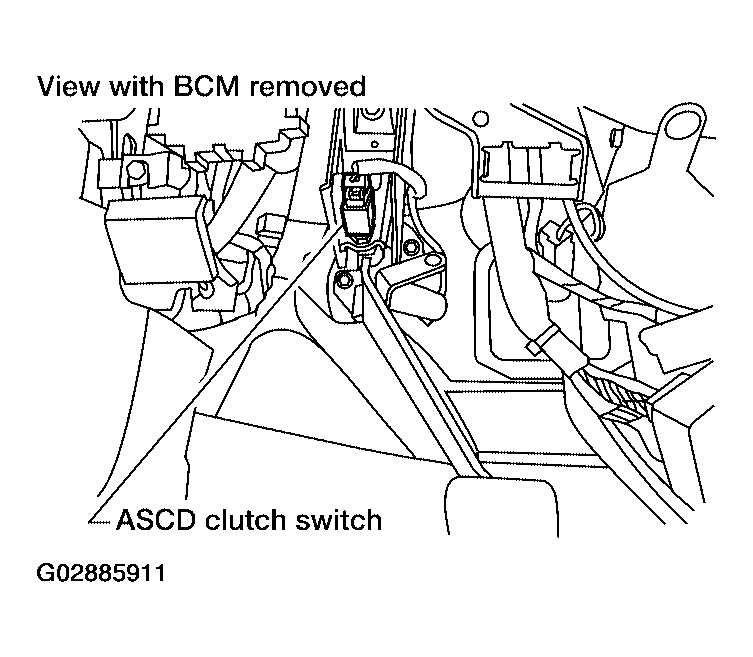

      Fig 7: Disconnecting ASCD Clutch Switch Harness Connector
      G02885911Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ASCD clutch switch terminal 1 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    1. OK : GO TO  6.
    2. NG : GO TO 5.

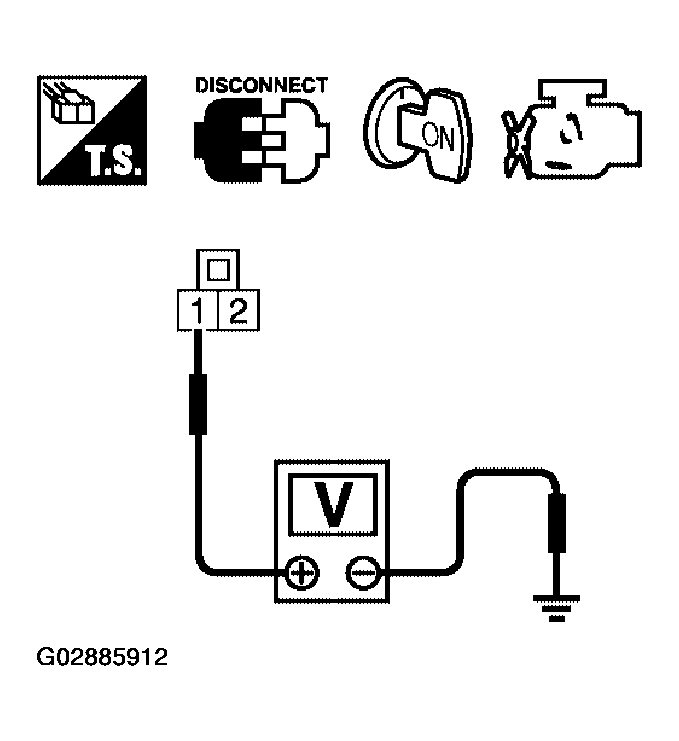

      Fig 8: Checking Voltage Between ASCD Clutch Switch Terminal I And Ground
      G02885912Courtesy of NISSAN MOTOR CO., U.S.A.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E30
    • 10A fuse
    • Harness for open or short between ASCD clutch switch and fuse
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  6. CHECK ASCD CLUTCH SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between ASCD clutch switch terminal 2 and ASCD brake switch terminal 1.

      Refer to Wiring Diagram .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO 7.
    2. NG : Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK ASCD CLUTCH SWITCH

    Refer to "COMPONENT INSPECTION "

    OK or NG

    1. OK : GO TO  18.
    2. NG : Replace ASCD clutch switch.
  8. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD brake switch harness connector.
    3. Turn ignition switch ON.

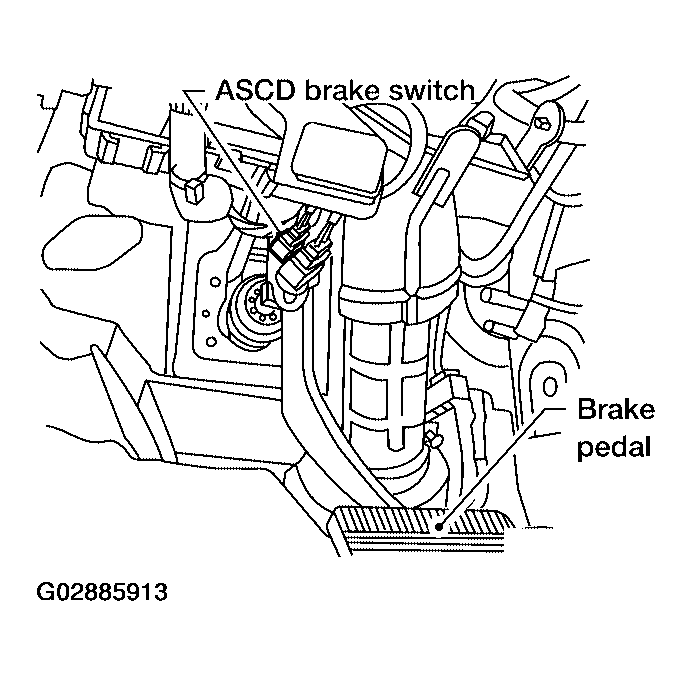

      Fig 9: Disconnecting ASCD Brake Switch Harness Connector
      G02885913Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    1. OK : GO TO  10.
    2. NG : GO TO 9.
      Fig 10: Checking Voltage Between ASCD Brake Switch Terminal 1 And Ground
      G02885914Courtesy of NISSAN MOTOR CO., U.S.A.
  9. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E30
    • 10A fuse
    • Harness for open or short between ASCD brake switch and fuse
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  10. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 59 and ASCD brake switch terminal 2.

      Refer to Wiring Diagram .

      Continuity should exist.

    4. Also check harness for short to ground or short to power.

    OK or NG

    1. OK : GO TO  12.
    2. NG : GO TO 11.
  11. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E21, F34
    • Harness for open or short between ECM and ASCD brake switch
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  12. CHECK ASCD BRAKE SWITCH

    Refer to "COMPONENT INSPECTION "

    OK or NG

    1. OK : GO TO  18.
    2. NG : Replace ASCD brake switch.
  13. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect stop lamp switch harness connector.

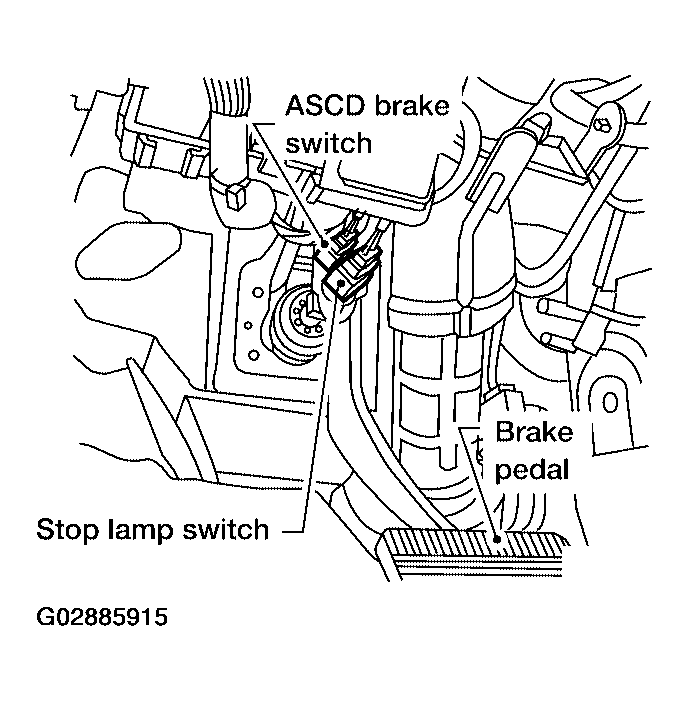

      Fig 11: Disconnecting Stop Lamp Switch Harness Connector
      G02885915Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    1. OK : GO TO  15.
    2. NG : GO TO 14.

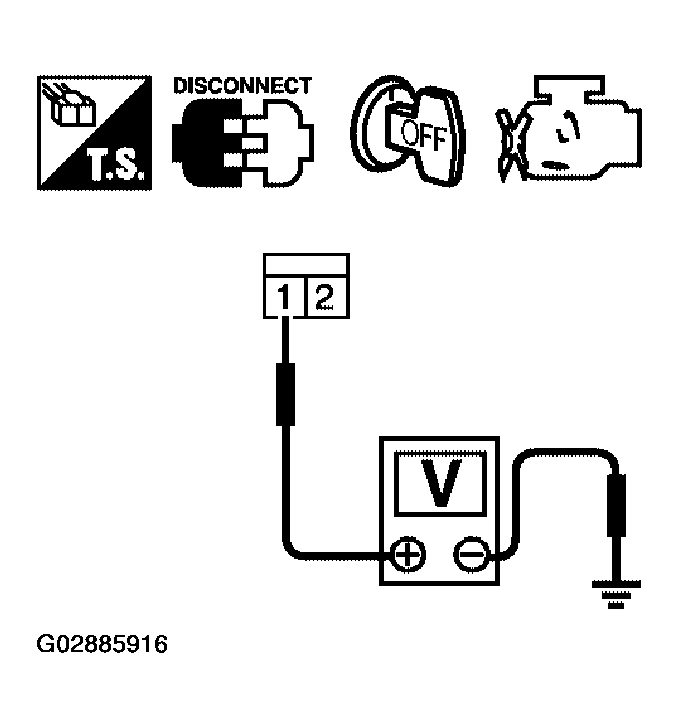

      Fig 12: Checking Voltage Between Stop Lamp Switch Terminal 1 And Ground
      G02885916Courtesy of NISSAN MOTOR CO., U.S.A.
  14. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E30
    • 10A fuse
    • Harness for open or short between stop lamp switch and battery
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  15. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 55 and stop lamp switch terminal 2.

      Refer to Wiring Diagram .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO  17.
    2. NG : GO TO 16.
  16. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E28, M7
    • Harness connectors M71, F59
    • Harness for open or short between ECM and stop lamp switch
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  17. CHECK STOP LAMP SWITCH

    Refer to "COMPONENT INSPECTION "

    OK or NG

    1. OK : GO TO 18.
    2. NG : Replace stop lamp switch.
  18. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. : INSPECTION END
