Stop Lamp Switch

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    STOP LAMP SWITCH SPECIFICATION

    Condition Continuity
    When brake pedal is fully released. Should not exist.
    When brake pedal is depressed. Should exist.

    If NG, adjust stop lamp switch installation , and perform step 3 again.

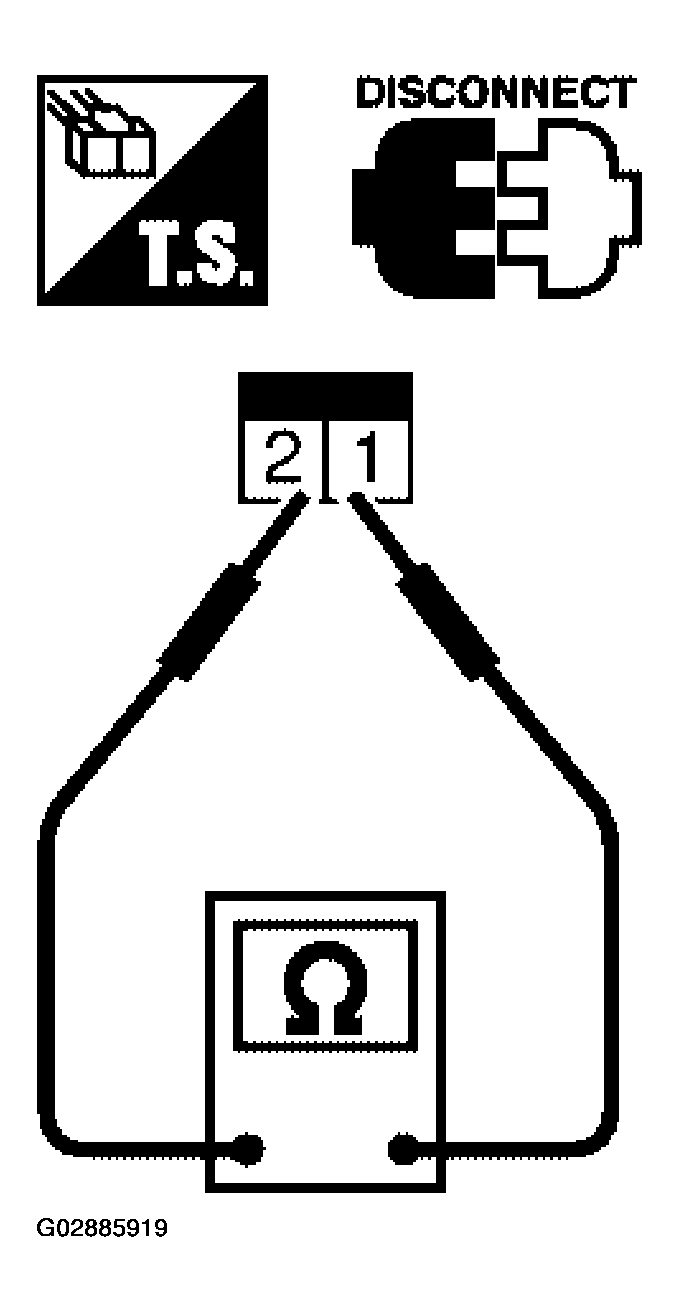

    Fig 1: Checking Harness Continuity Between Stop Lamp Switch Terminals 1 And 2
    G02885919Courtesy of NISSAN MOTOR CO., U.S.A.
