Without CONSULT-II
WARNING: This page is about a different variant/trim than selected.

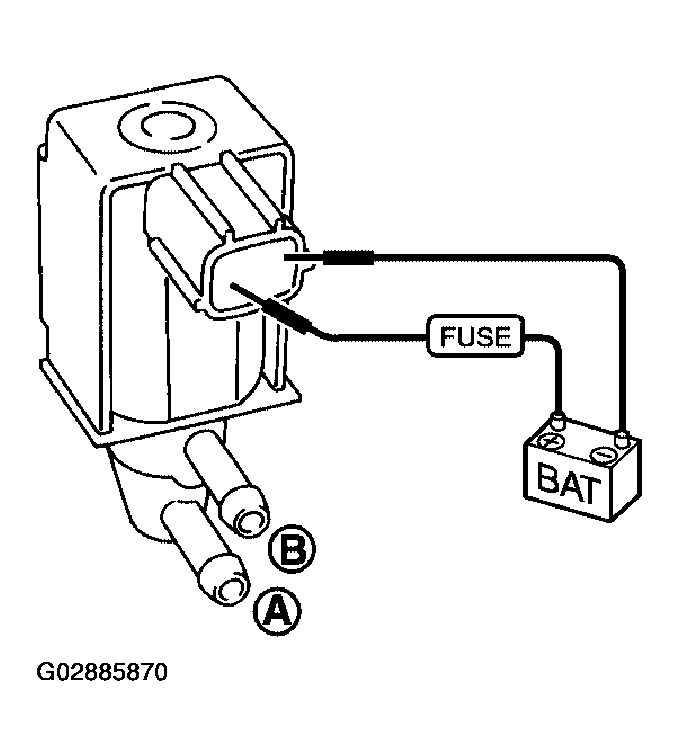

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.
AIR PASSAGE CONTINUITY SPECIFICATION
| Condition |
Air passage continuity between A and B |
| 12V direct current supply between terminals 1 and 2 |
Yes |
| No supply |
No |
Courtesy of NISSAN MOTOR CO., U.S.A.
