DTC P1217: Engine Over Temperature: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

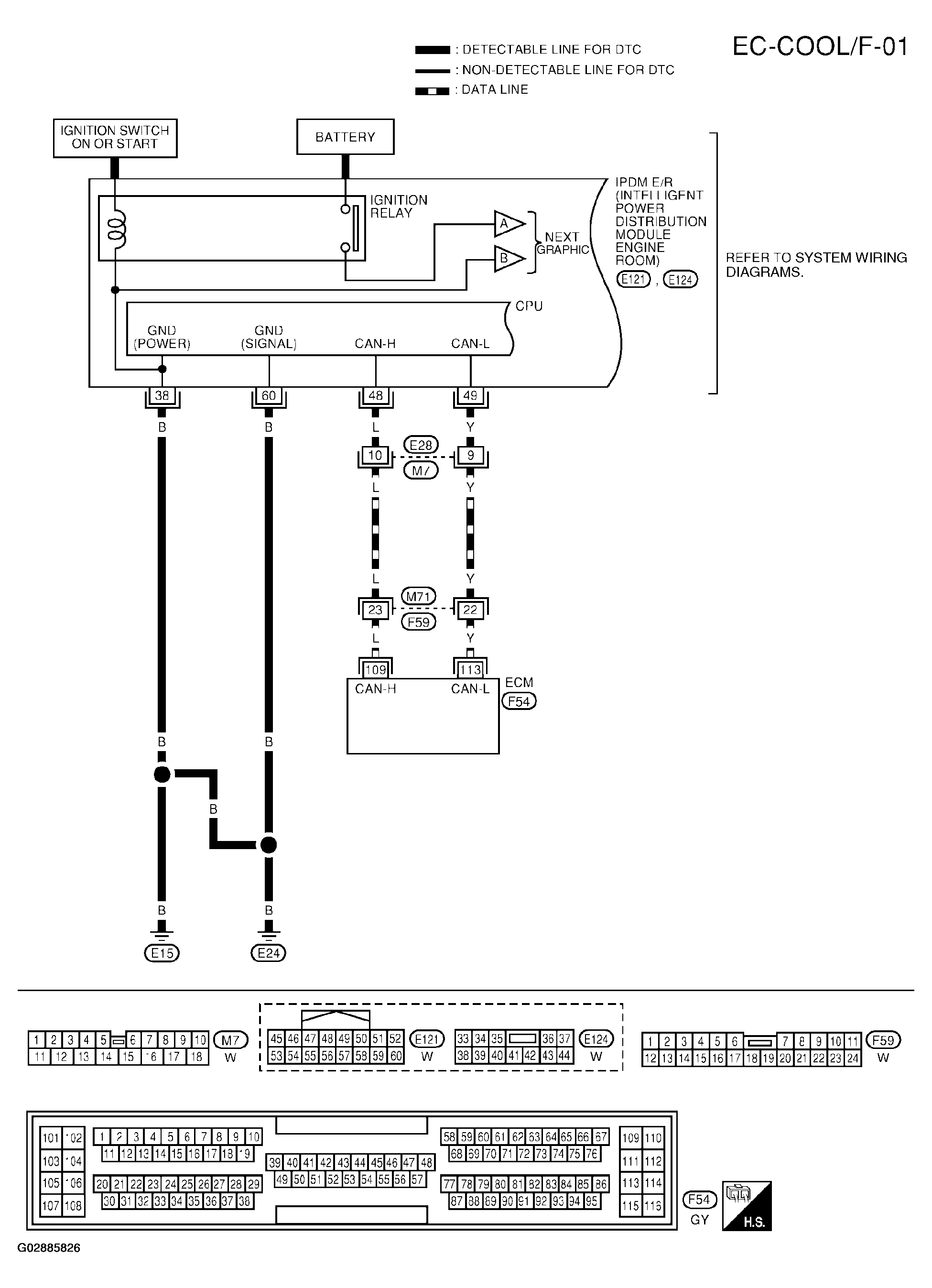

Fig 1: Wiring Diagram - EC-COOL/F-01
G02885826Courtesy of NISSAN MOTOR CO., U.S.A.

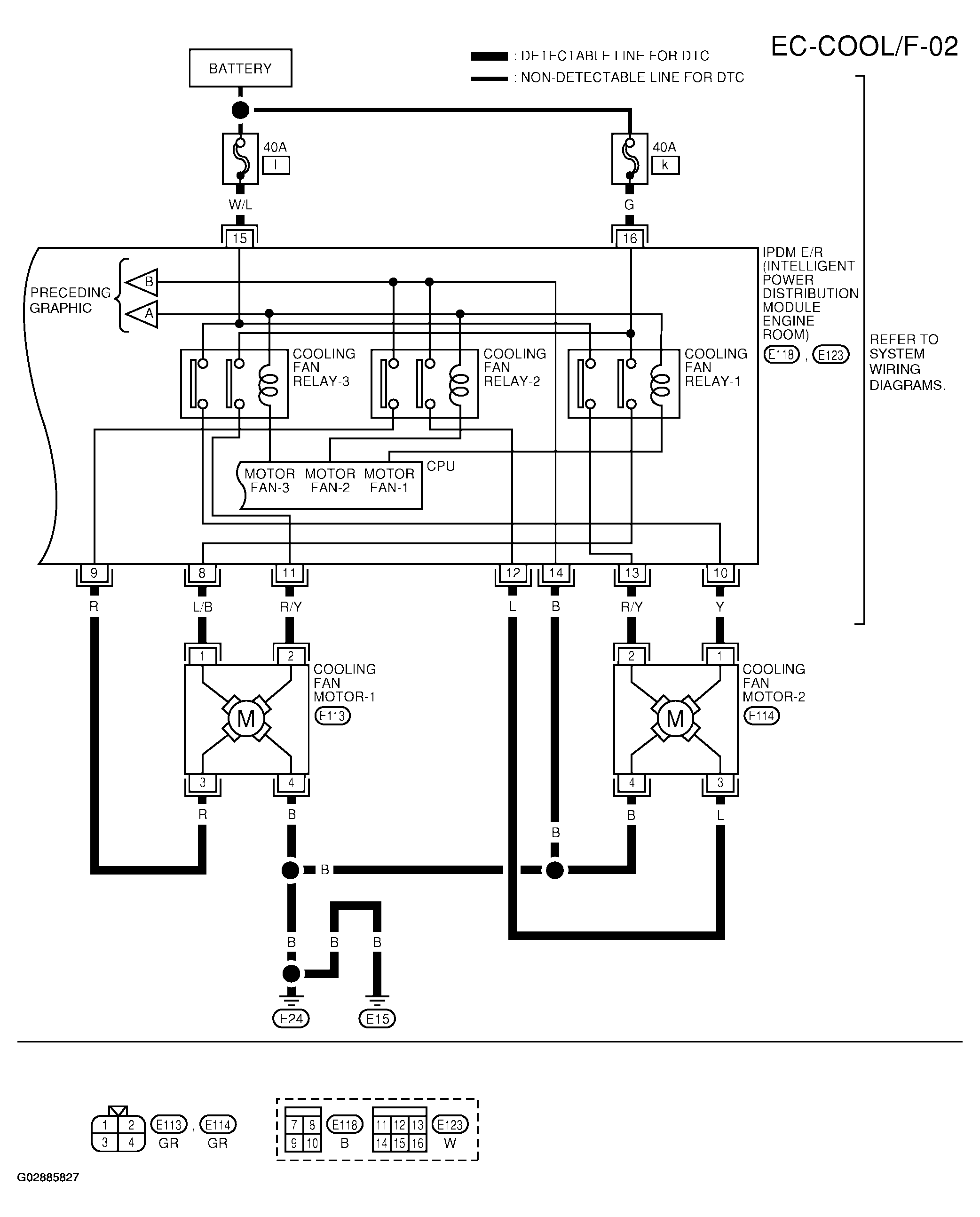

Fig 2: Wiring Diagram - EC-COOL/F-02
G02885827Courtesy of NISSAN MOTOR CO., U.S.A.
