Cooling Fan Relay Operation

WARNING: This page is about a different variant/trim than selected.

The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.

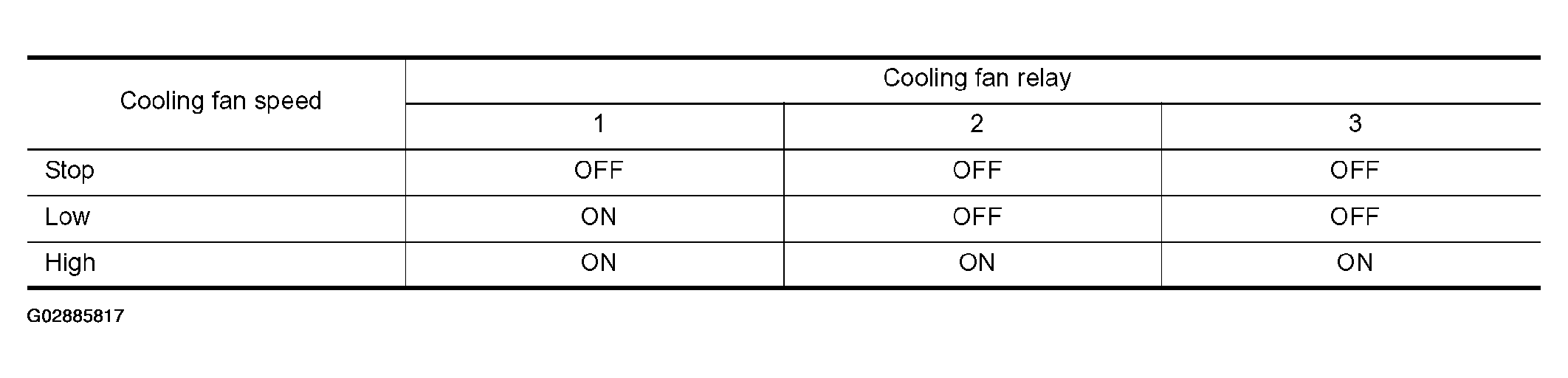

Fig 1: Cooling Fan Relay Specification

Courtesy of NISSAN MOTOR CO., U.S.A.
