Cooling Fan Motor

WARNING: This page is about a different variant/trim than selected.

The cooling fan operates at each speed when the current flows in the cooling fan motor as follows.

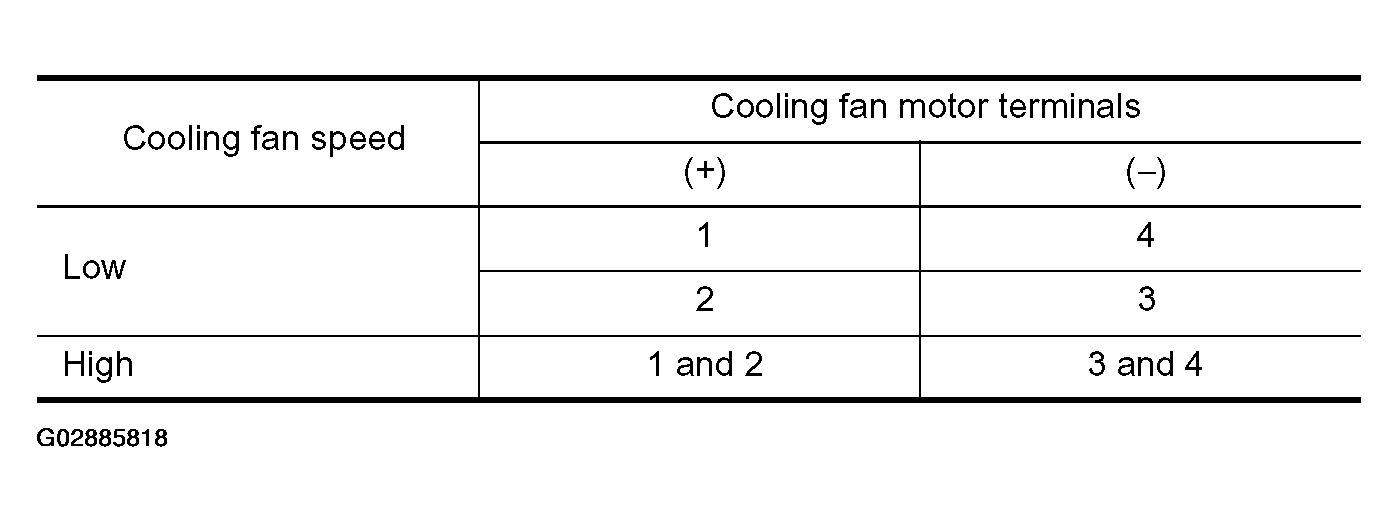

Fig 1: Cooling Fan Motor Specification
G02885818Courtesy of NISSAN MOTOR CO., U.S.A.
