Cooling Fan Motors -1 And -2

WARNING: This page is about a different variant/trim than selected.

Disconnect cooling fan motor harness connectors.
Supply cooling fan motor terminals with battery voltage and check operation.

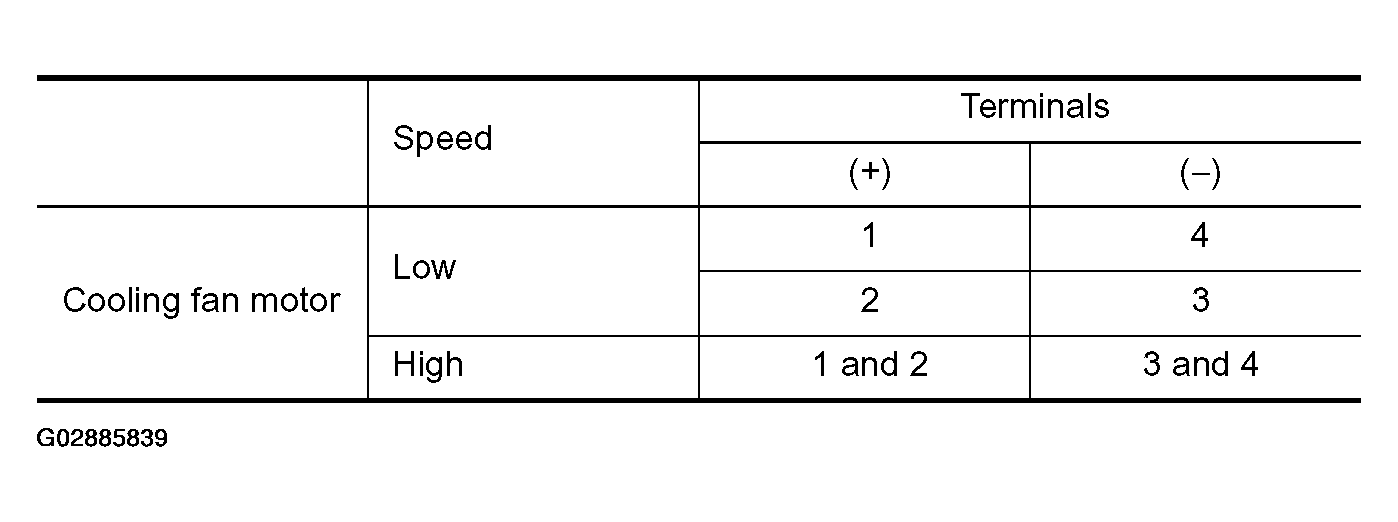

Fig 1: Cooling Fan Motor Diagnosis Table
Courtesy of NISSAN MOTOR CO., U.S.A.

Cooling fan motor should operate.

If NG, replace cooling fan motor.

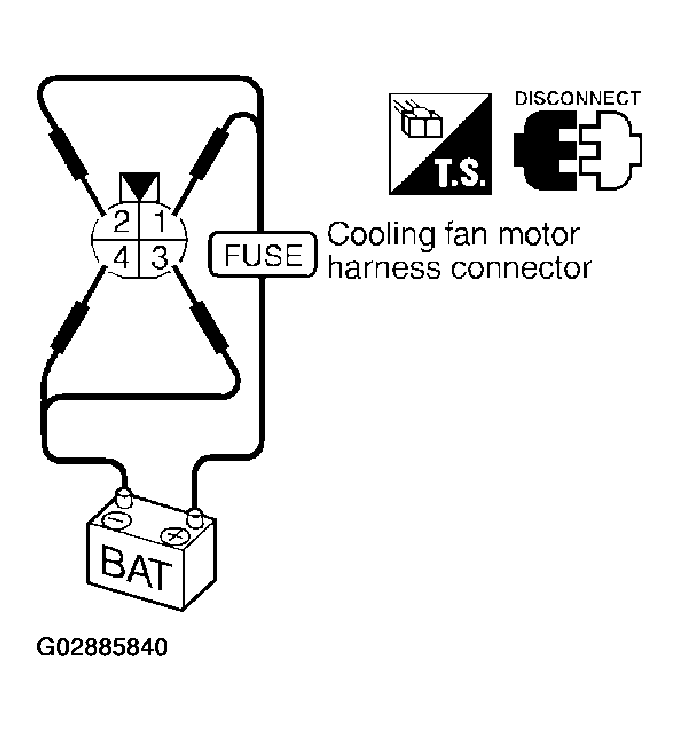

Fig 2: Checking Cooling Fan Motor Terminals With Battery Voltage
Courtesy of NISSAN MOTOR CO., U.S.A.
