On Board Diagnosis Logic

WARNING: This page is about a different variant/trim than selected.

To judge the malfunction, the output from the heated oxygen sensor 1 is monitored to determine whether the "rich" output is sufficiently high. The "lean" output is sufficiently low. When both the outputs are shifting to the rich side, the malfunction will be detected.

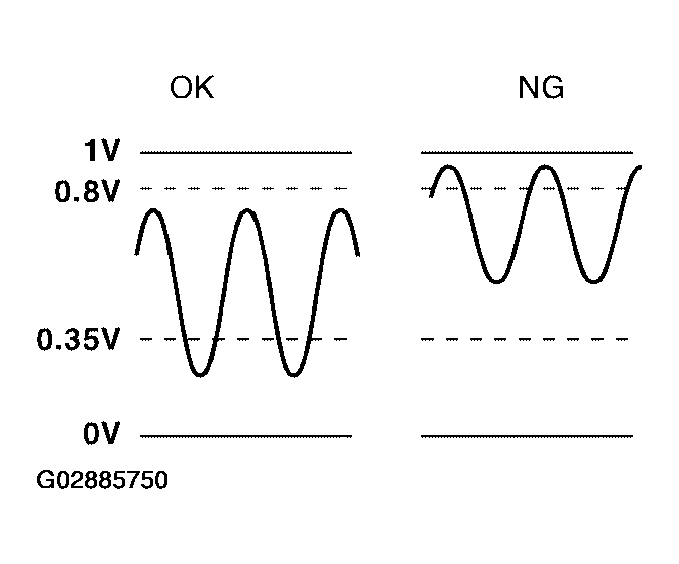

Fig 1: Identifying Output Voltage Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

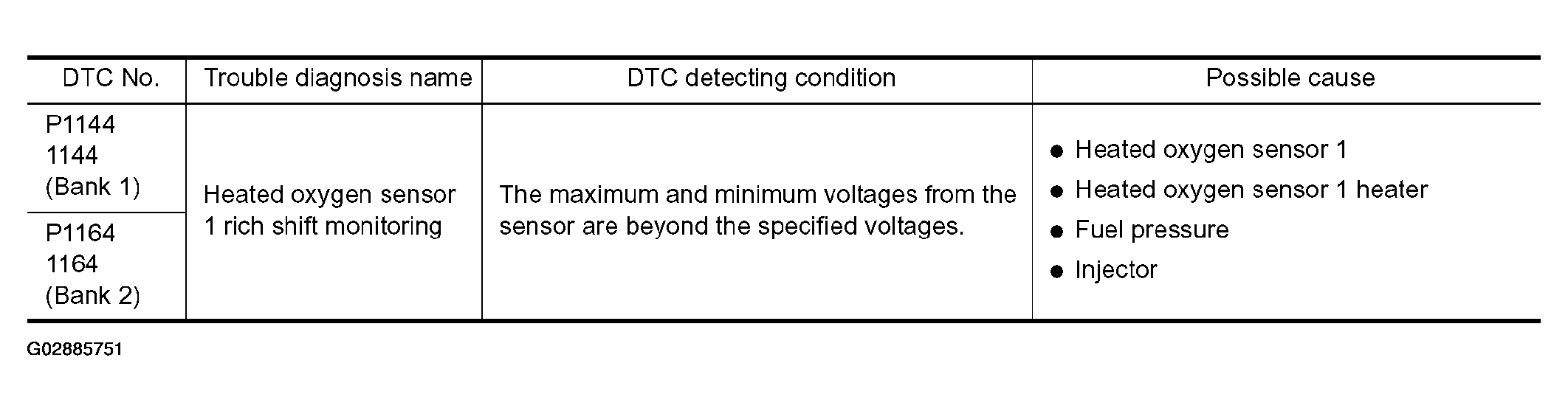

Fig 2: DTC Detecting Condition Table

Courtesy of NISSAN MOTOR CO., U.S.A.
