With GST

WARNING: This page is about a different variant/trim than selected.
  1. Start engine and warm it up to normal operating temperature.
  2. Set voltmeter probes between ECM terminal 91 [HO2S1(B1) signal] or 92 [HO2S1(B2) signal] and ground.
  3. Check one of the following with engine speed held at 2, 000 RPM constant under no load.
    • The maximum voltage is over 0.6V at least one time.
    • The minimum voltage is over 0.1 Vat least one time.
  4. If NG, go to "DIAGNOSTIC PROCEDURE ".

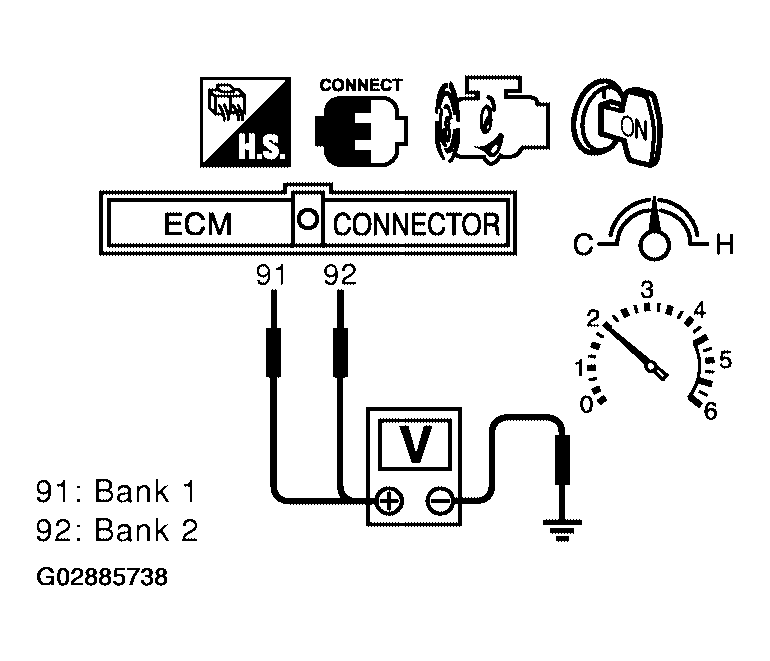

    Fig 1: Checking Voltage Between Terminal 91 Or 92 And Ground
    G02885738Courtesy of NISSAN MOTOR CO., U.S.A.
