With Consult-II

WARNING: This page is about a different variant/trim than selected.

Start engine and warm it up to normal operating temperature.
Stop engine and wait at least 10 seconds.
Turn ignition switch ON and select "HO2S1 (B1) P1143" of "HO2S1" or "HO2S1 (B2) P1163" of "HO2S1" in "DTC WORK SUPPORT" mode with CONSULT-II.
Touch "START".
Start engine and let it idle for at least 3 minutes.
NOTE: Never raise engine speed above 3, 600 RPM after this step. If the engine speed limit is exceeded, return to step 5.

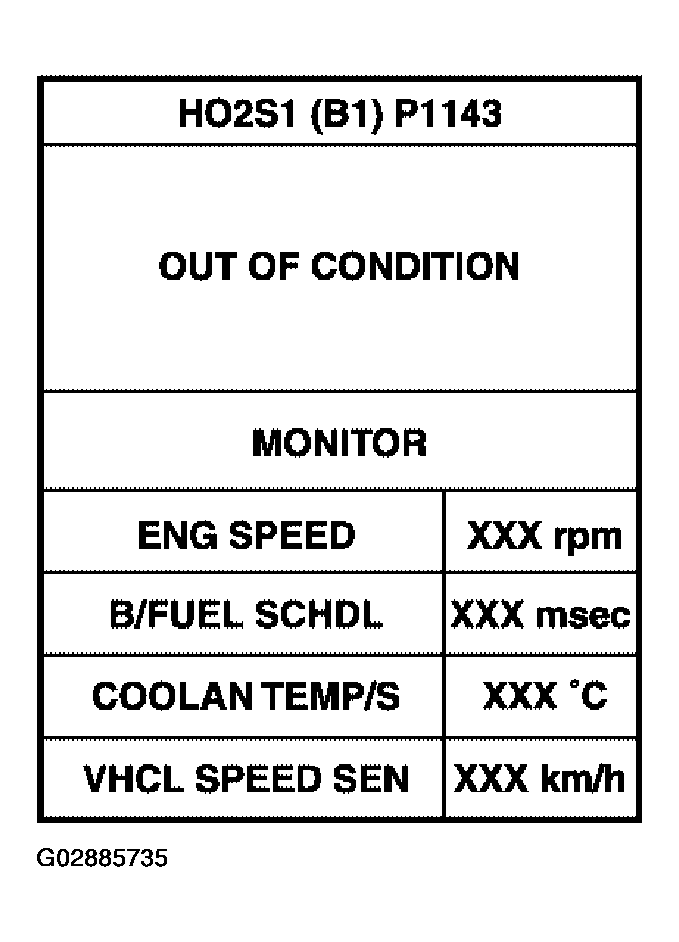

Fig 1: CONSULT-II Diagnosis Function Display (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take approximately 50 seconds or more.)

ENGINE SPEED AND VEHICLE SPEED SPECIFICATION

ENG SPEED	1, 200 - 2, 600 RPM
Vehicle speed	Less than 100 km/h (62 MPH)
B/FUELSCHDL	2.5 - 12.0 msec
Selector lever	Suitable position

If "TESTING" is not displayed after 5 minutes, retry from step 2.

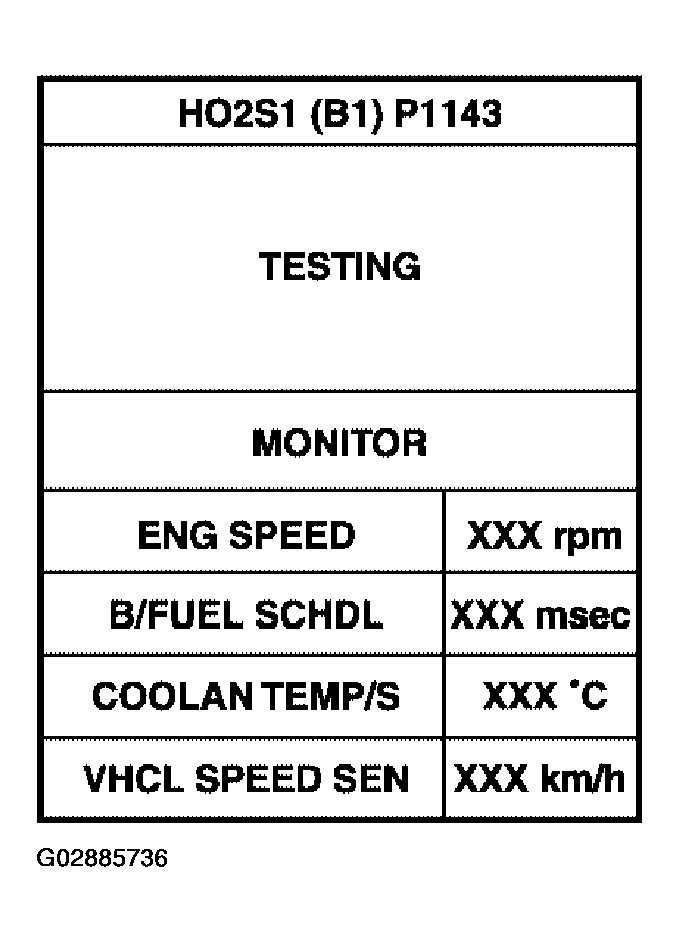

Fig 2: CONSULT-II Diagnosis Function Display (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".

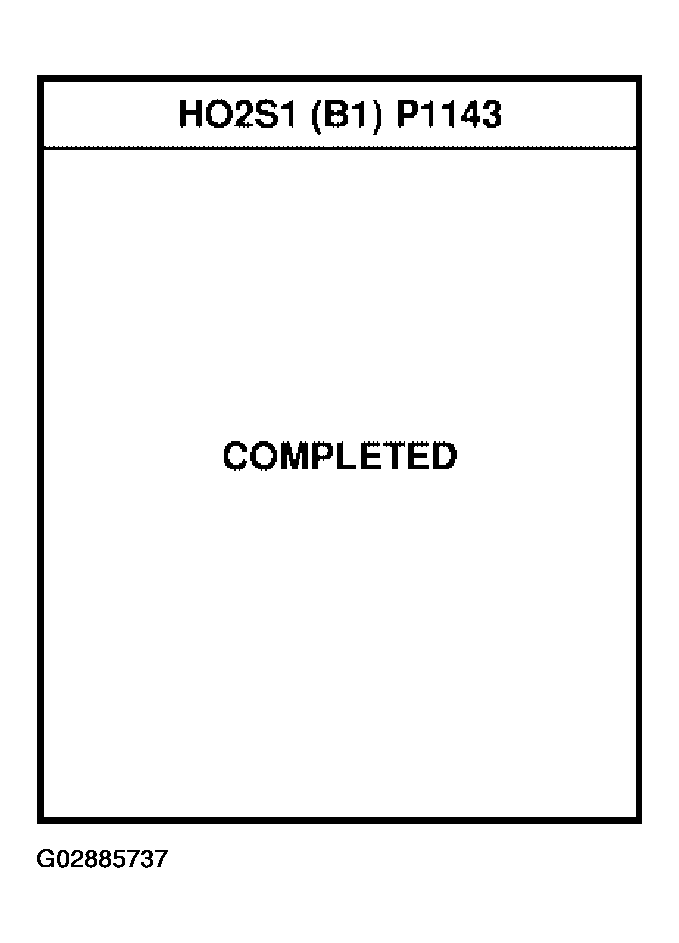

Fig 3: CONSULT-II Diagnosis Function Display (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
