With CONSULT-II

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch ON and wait at least 2 seconds.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for 5 seconds.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

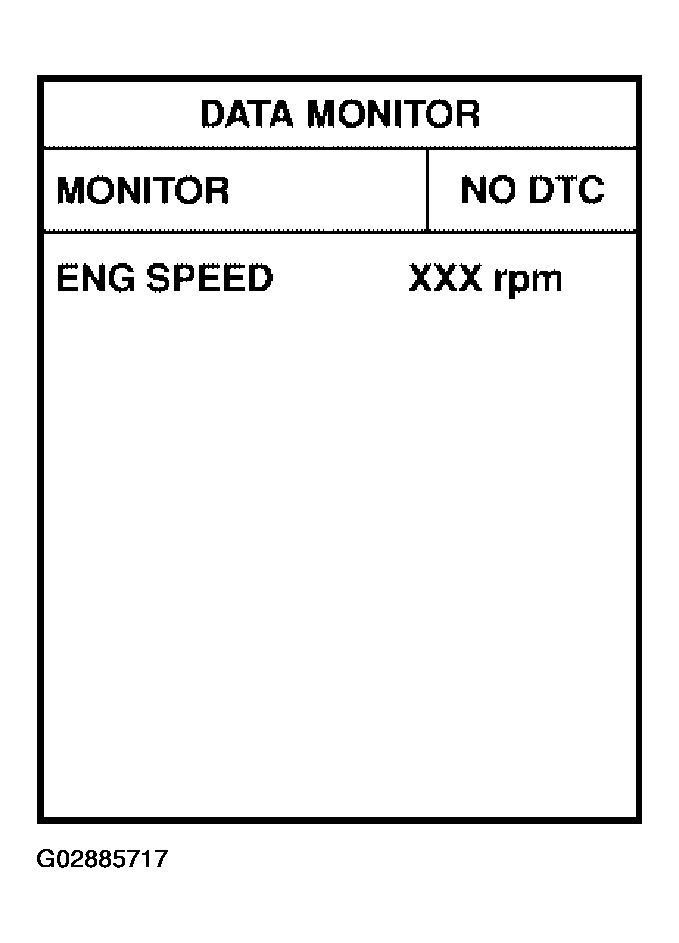

    Fig 1: CONSULT-II Diagnosis Function Display (2 Of 2)
    G02885717Courtesy of NISSAN MOTOR CO., U.S.A.
