Section 6 (Engine Control System - 3.5L)
>>
DTC P1124, P1126: Throttle Control Motor Relay
>>
DTC Confirmation Procedure
>>
Procedure For DTC P1124
>>
With CONSULT-II
With CONSULT-II
WARNING:
This page is about a different variant/trim than selected.
Turn ignition switch ON and wait at least 1 second.
Select "DATA MONITOR" mode with CONSULT-II.
If DTC is detected, go to "
DIAGNOSTIC PROCEDURE
".

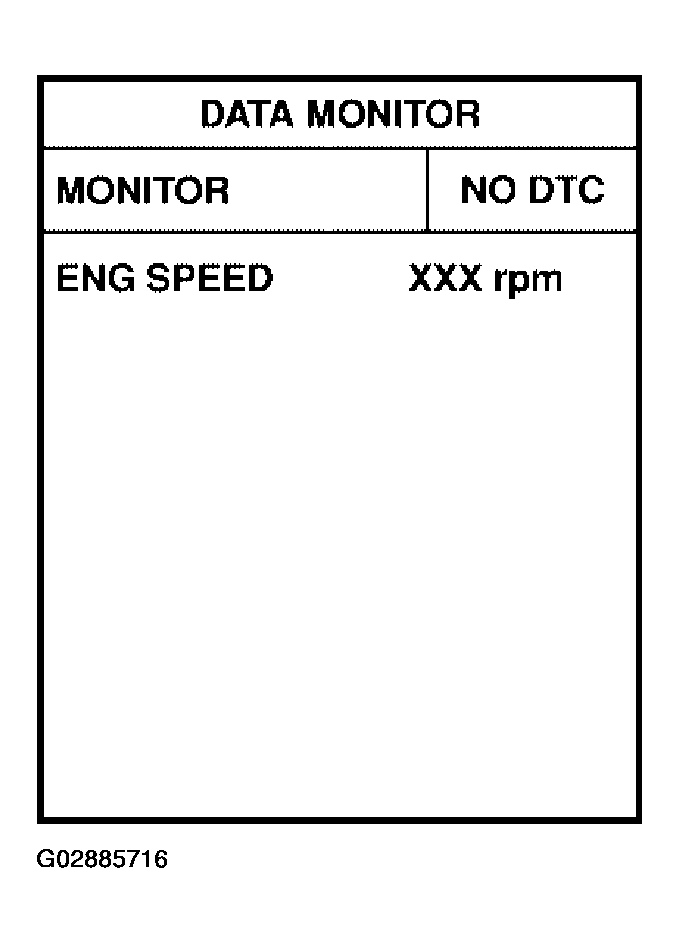

Fig 1: CONSULT-II Diagnosis Function Display (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
