With CONSULT-II

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch ON and wait at least 1 second.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Shift selector lever to D position (A/T), 1st position (M/T) and wait at least 3 seconds.
  4. Shift selector lever to N or P position (A/T) or Neutral position (M/T).
  5. Start engine and let it idle for 3 seconds.
  6. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

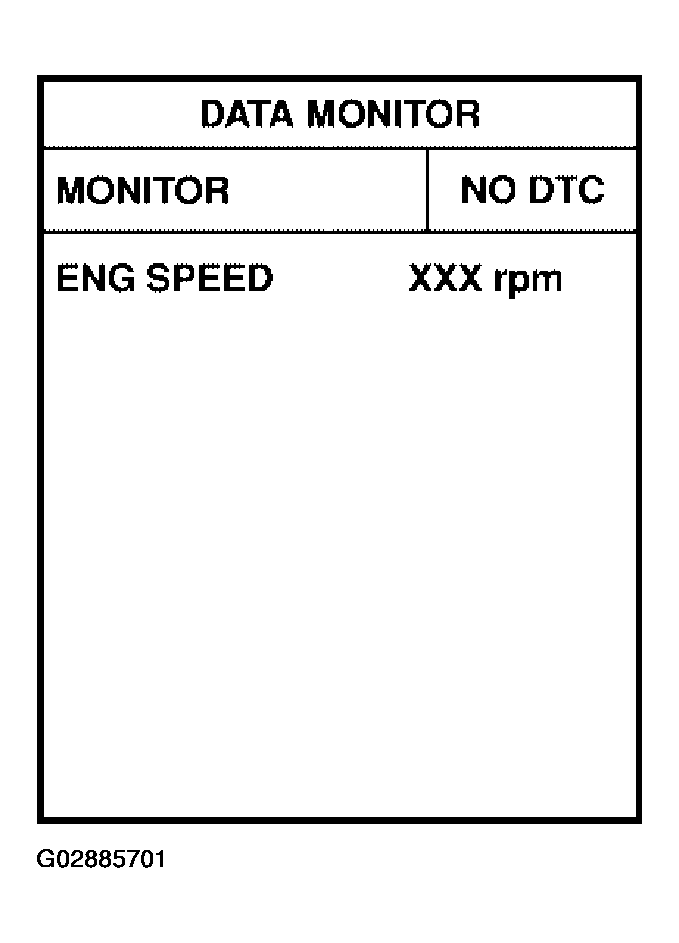

    Fig 1: CONSULT-II Diagnosis Function Display (2 Of 2)
    G02885701Courtesy of NISSAN MOTOR CO., U.S.A.
