With CONSULT-II

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition witch ON and wait at least 1 second.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Shift selector lever to D position (A/T) or 1st position (M/T), and wait at least 3 seconds.
  4. Shift selector lever to P position (A/T) or neutral position (M/T).
  5. Turn ignition switch OFF and wait at least 10 seconds.
  6. Turn ignition switch ON and wait at least 1 seconds.
  7. Shift selector lever to D position (A/T) or 1st position (M/T), and wait at least 3 seconds.
  8. Shift selector lever to P position (A/T) or neutral position (M/T).
  9. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.

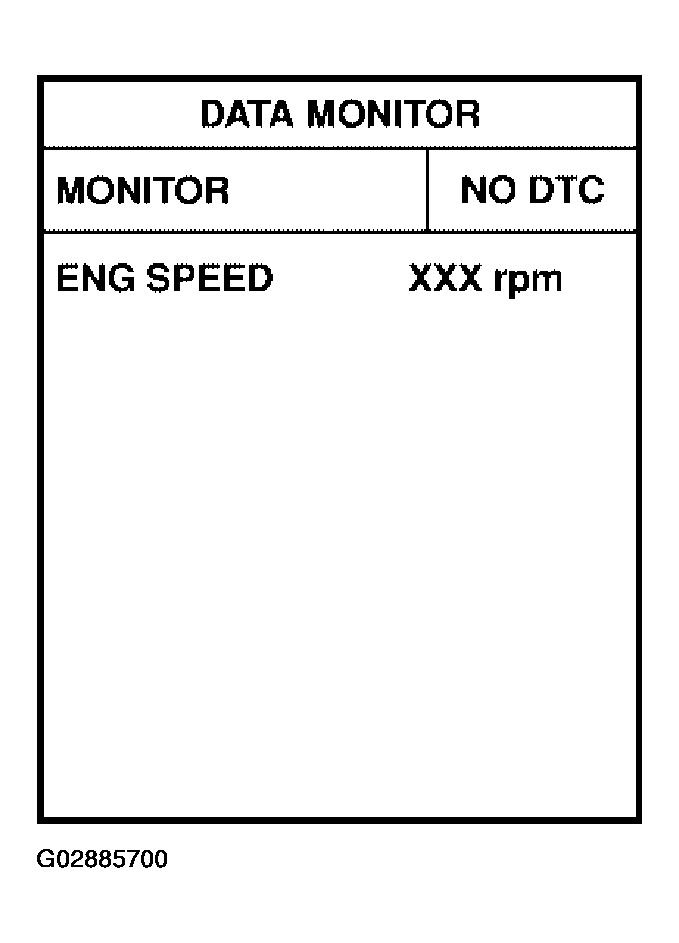

    Fig 1: CONSULT-II Diagnosis Function Display (1 Of 2)
    G02885700Courtesy of NISSAN MOTOR CO., U.S.A.
  10. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
