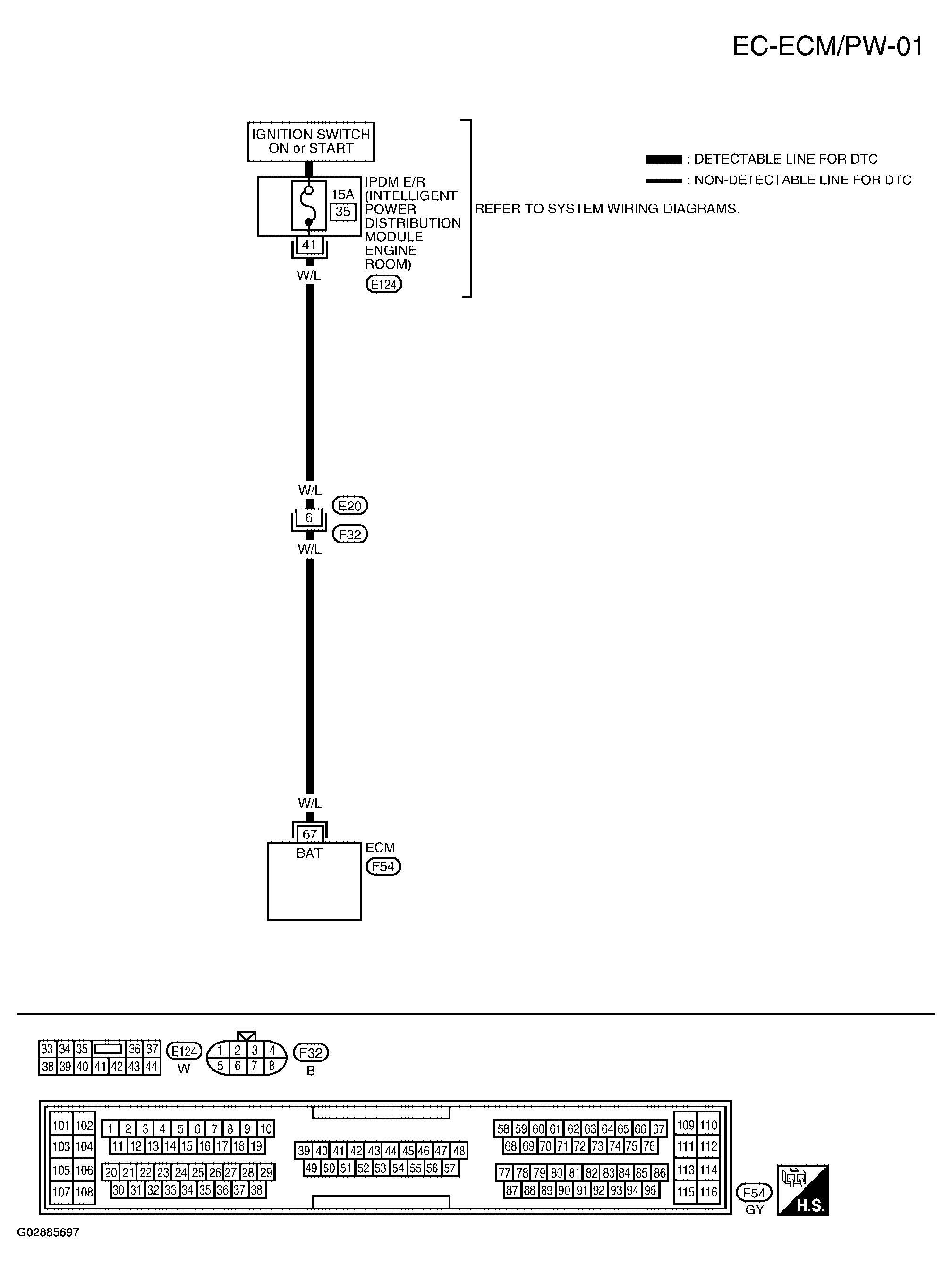

DTC P1065: ECM Power Supply: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
ECM TERMINALS VOLTAGE
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 67 | W/L | Power supply for ECM (Buck-up) | [Ignition switch OFF] | BATTERY VOLTAGE (11 - 14V) |
