Diagnostic Procedure

WARNING: This page is about a different variant/trim than selected.

CHECK MIL POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect combination meter harness connector.
3. Turn ignition switch ON.
4. Check voltage between combination meter terminals 17, 18 and ground with CONSULT-II or tester
  Voltage: Battery voltage
OK or NG
1. OK : GO TO 3.
2. NG : GO TO 2.

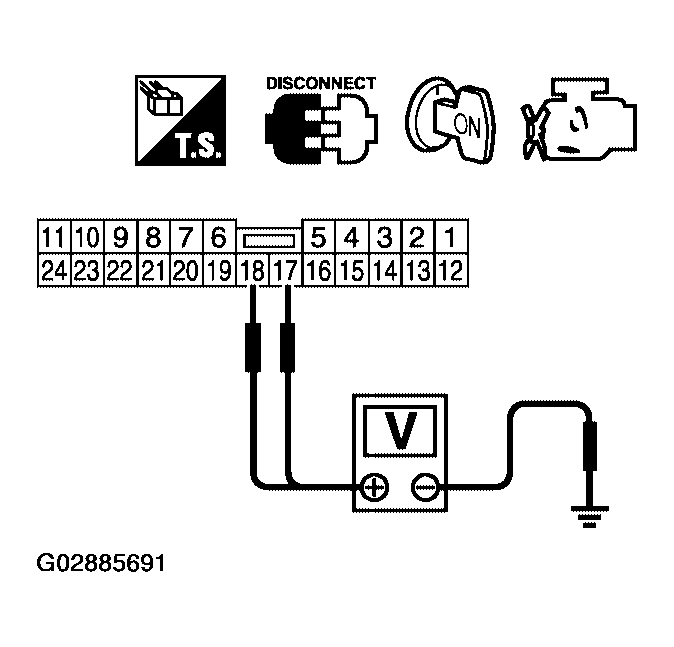

  Fig 1: Checking Voltage Between Combination Meter Terminals 17, 18 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
DETECT MALFUNCTIONING PART
Check the following.
- Fuse block (J/B) connector M4
- 10A fuse
- Harness for open or short between fuse block (J/B) and combination meter
1. : Repair harness or connectors.
CHECK MIL OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 33 and combination meter terminal 23.
  Refer to Wiring Diagram .

  Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
1. OK : GO TO 5.
2. NG : GO TO 4.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors F59, M71
- Harness for open or short between ECM and combination meter
1. : Repair open circuit or short to ground or short to power in harness or connectors.
CHECK COMBINATION METER
1. Turn ignition switch OFF.
2. Disconnect combination meter harness connector.
3. Check continuity under the following conditions.

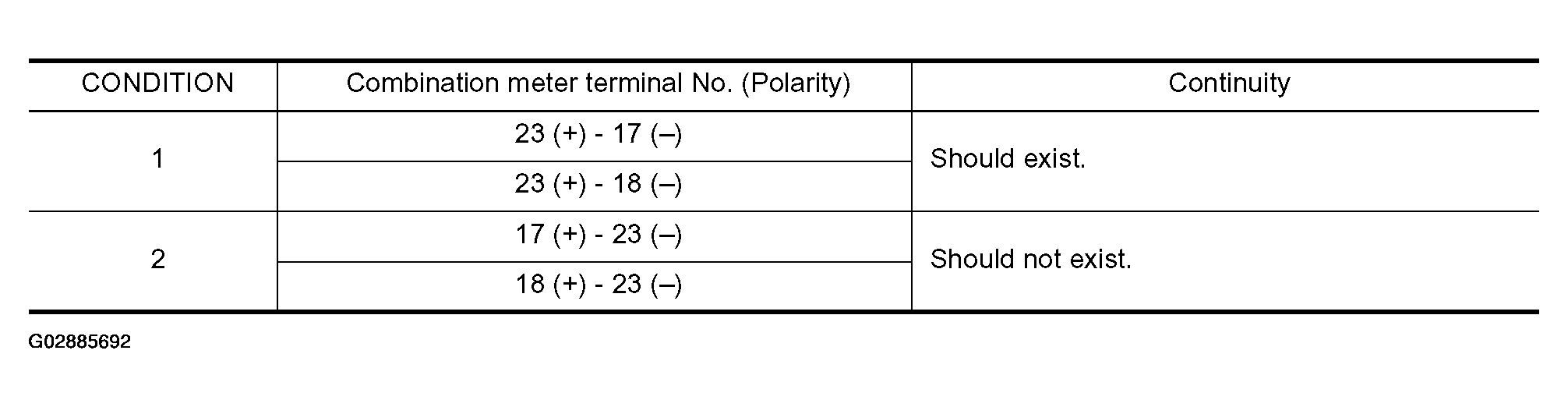

  Fig 2: Continuity Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

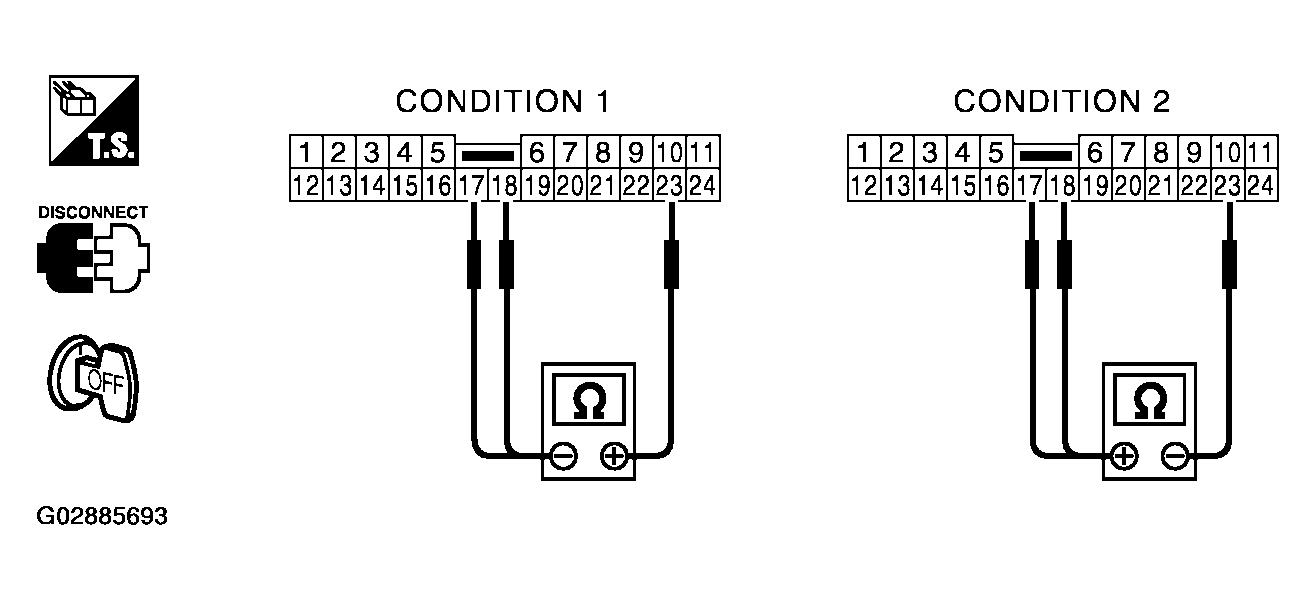

  Fig 3: Checking Continuity Between Combination Meter Connector Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 6.
2. NG : Replace combination meter. Refer to "COMBINATION METER ".
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
1. : INSPECTION END
