On Board Diagnosis Logic

ECM receives two signals from the fuel level sensor circuit.

One is fuel level sensor power supply circuit, and the other is fuel level sensor ground circuit.

This diagnosis indicates the former, to detect open or short circuit malfunction.

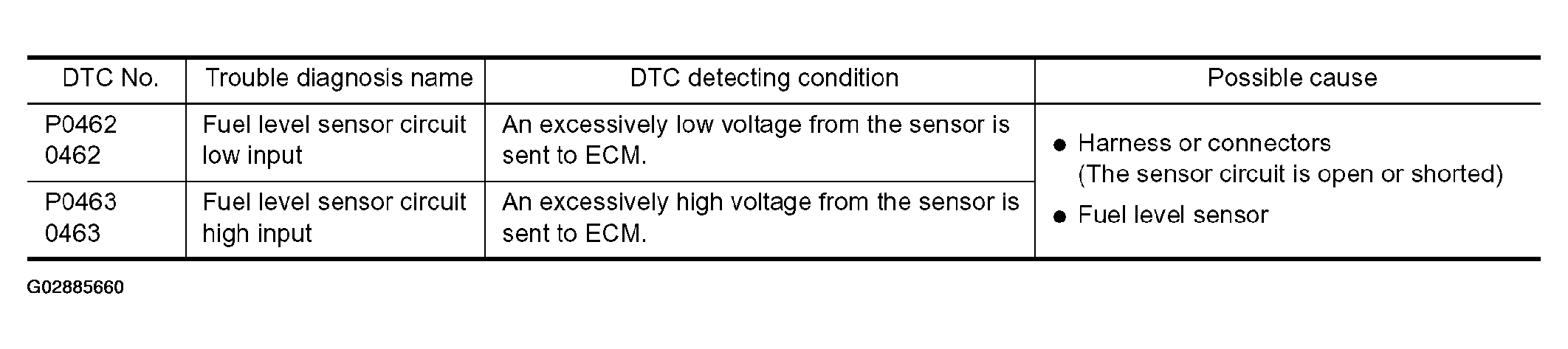

Fig 1: DTC Detecting Condition Table

Courtesy of NISSAN MOTOR CO., U.S.A.
