Without CONSULT-II

WARNING: This page is about a different variant/trim than selected.

Remove EVAP canister vent control valve from EVAP canister.
Check portion B of EVAP canister vent control valve for being rusted.

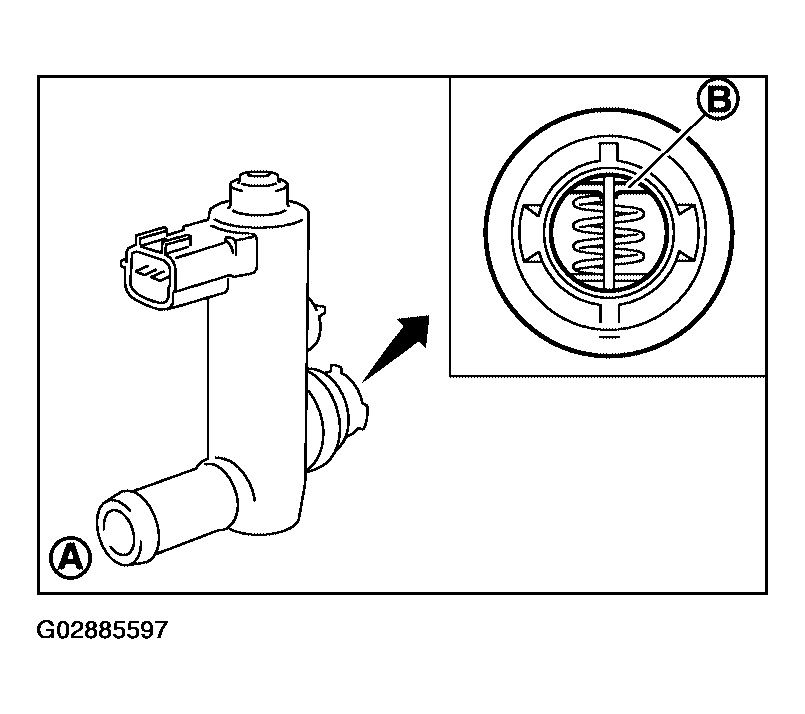

Fig 1: Checking Portion B Of EVAP Canister Vent Control Valve
Courtesy of NISSAN MOTOR CO., U.S.A.

Check air passage continuity and operation delay time under the following conditions.

Make sure new O-ring is installed properly.

AIR PASSAGE CONTINUITY BETWEEN A AND B

Condition	Air passage continuity between A and B
1 2V direct current supply between terminals 1 and 2	No
OFF	Yes

Operation takes less than 1 second.

If NG, replace EVAP canister vent control valve.

If OK, go to next step.

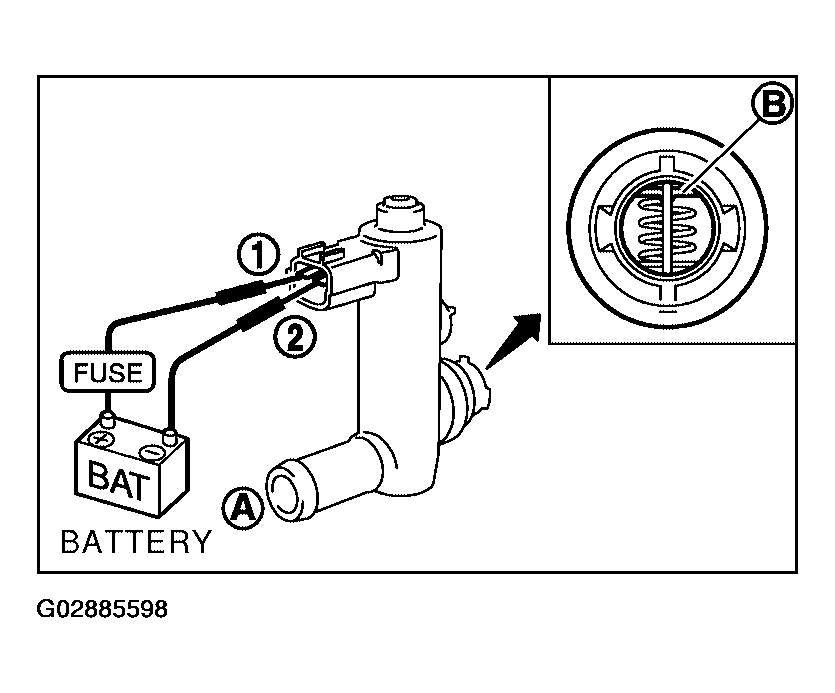

Fig 2: Checking Air Passage Continuity

Courtesy of NISSAN MOTOR CO., U.S.A.

Clean the air passage (Portion A to B) of EVAP canister vent control valve using an air blower.
Perform step 3 again.
