With CONSULT-II

WARNING: This page is about a different variant/trim than selected.

Remove EVAP canister vent control valve from EVAP canister.
Check portion B of EVAP canister vent control valve for being rusted.
If NG, replace EVAP canister vent control valve.

If OK, go to next step.
Reconnect harness connectors disconnected.
Turn ignition switch ON.
Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.

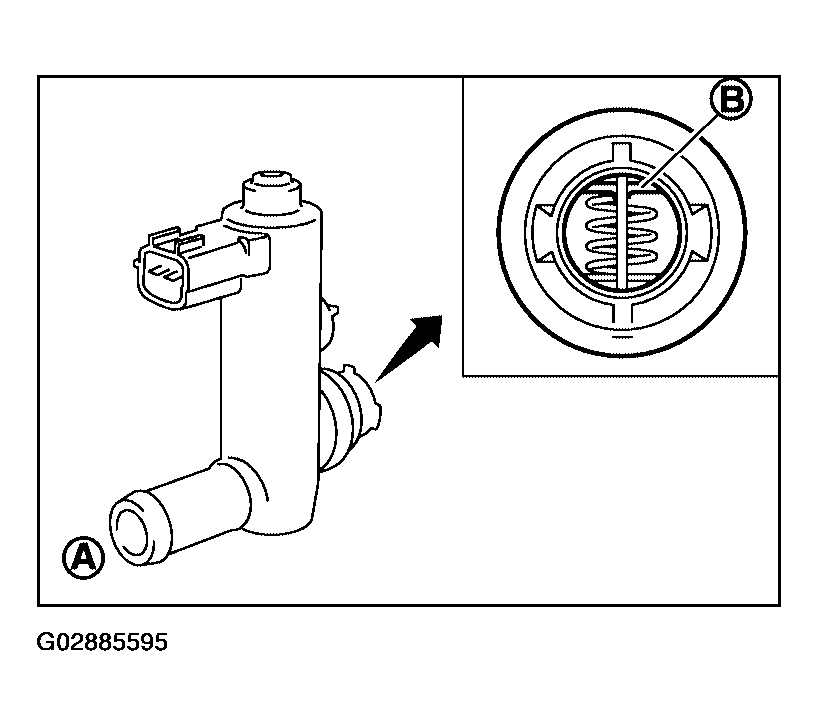

Fig 1: Checking Portion B Of EVAP Canister Vent Control Valve
Courtesy of NISSAN MOTOR CO., U.S.A.

Check air passage continuity and operation delay time.

AIR PASSAGE CONTINUITY BETWEEN A AND B

Condition VENT CONTROL/V	Air passage continuity between A and B
ON	No
OFF	Yes

Operation takes less than 1 second.

If NG, replace EVAP canister vent control valve.

If OK, go to next step.

Clean the air passage (Portion A to B) of EVAP canister vent control valve using an air blower.

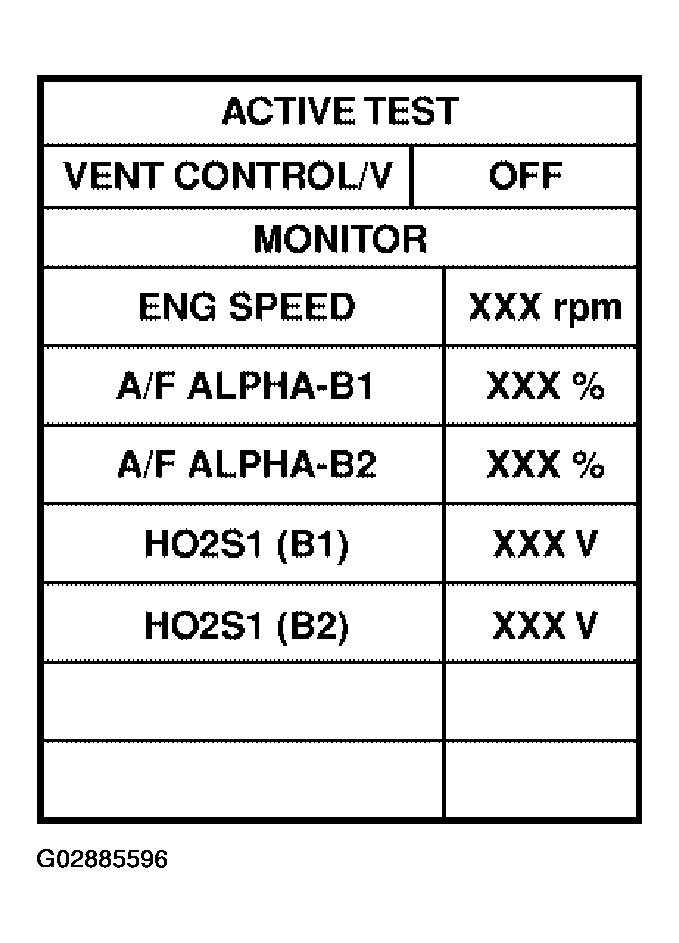

Fig 2: CONSULT-II Diagnosis Function Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform step 6 again.
