Without CONSULT-II

WARNING: This page is about a different variant/trim than selected.

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

AIR PASSAGE CONTINUITY BETWEEN A AND B (WITHOUT CONSULT-II)

Condition	Air passage continuity between A and B
12V direct current supply between terminals 1 and 2	Yes
No supply	No

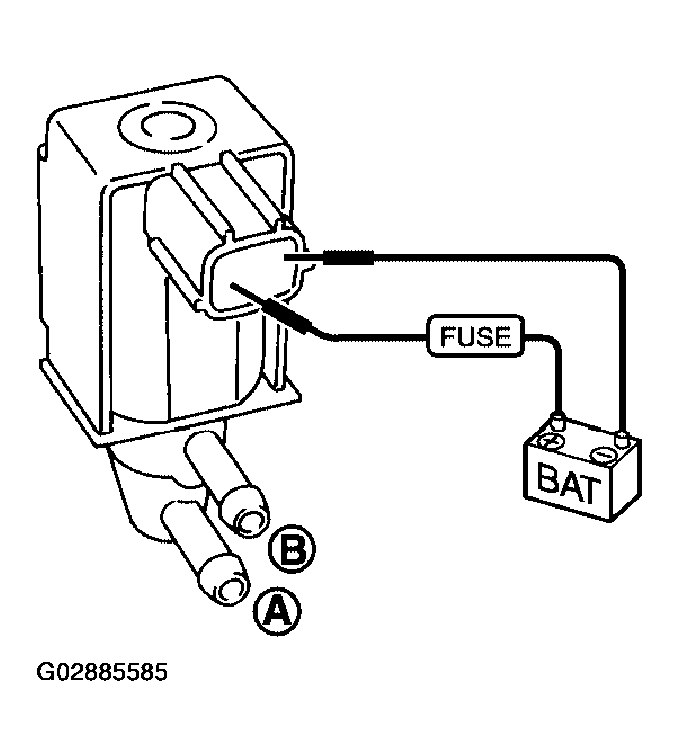

Fig 1: Applying Battery Voltage Of EVAP Canister Purge Volume Control Solenoid Valve Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
