With CONSULT-II

WARNING: This page is about a different variant/trim than selected.

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

AIR PASSAGE CONTINUITY BETWEEN A AND B (WITH CONSULT-II)

Condition (PURG VOL CONT/V value)	Air passage continuity between A and B
100%	Yes
0%	No

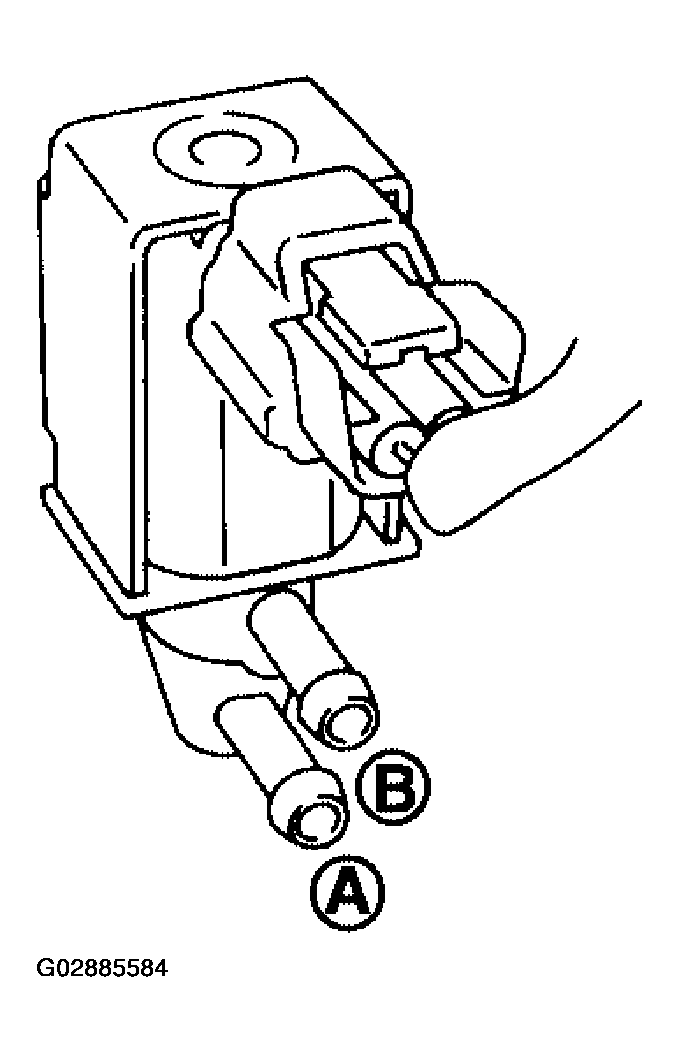

Fig 1: Checking Air Passage Continuity Of EVAP Canister Purge Volume Control Solenoid Valve

Courtesy of NISSAN MOTOR CO., U.S.A.
