Camshaft Position Sensor (Phase)

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the fixing bolt of the sensor.
  2. Disconnect camshaft position sensor (PHASE) harness connector.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.

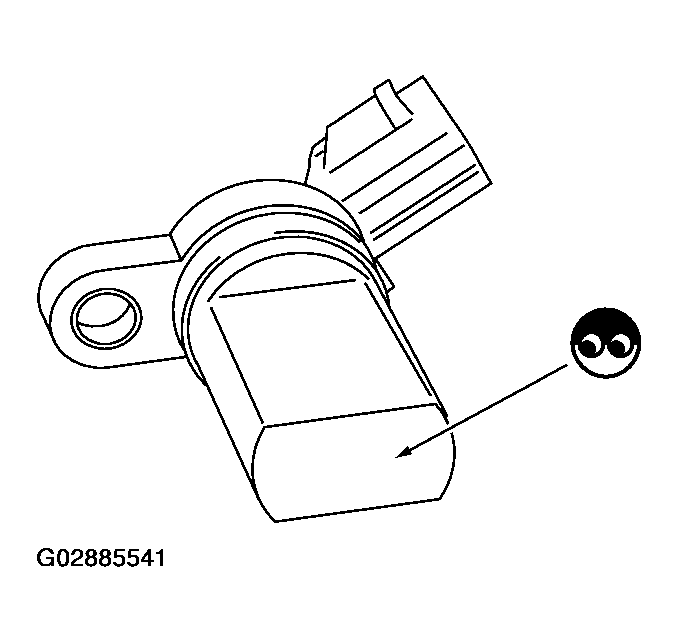

    Fig 1: Identifying Camshaft Position Sensor (PHASE)
    G02885541Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Check resistance as shown in the figure.

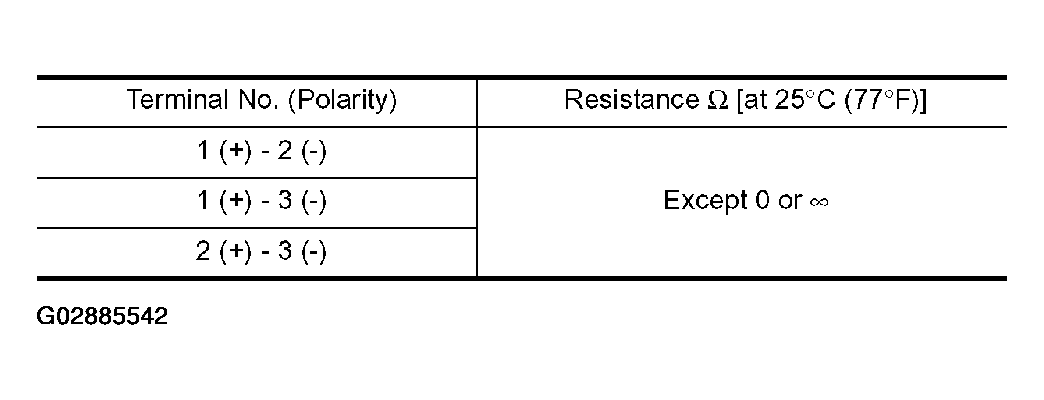

    Fig 2: Resistance Table
    G02885542Courtesy of NISSAN MOTOR CO., U.S.A.

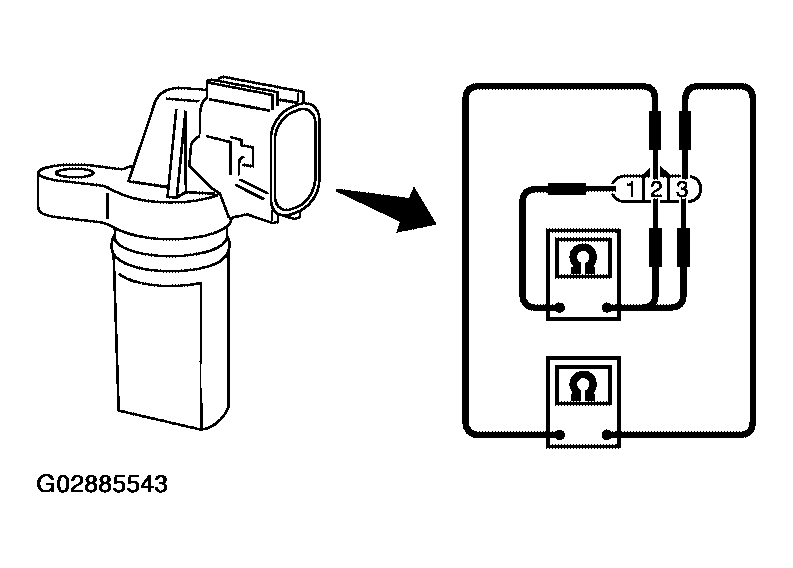

    Fig 3: Checking Resistance Between Camshaft Position Sensor (PHASE) Terminals
    G02885543Courtesy of NISSAN MOTOR CO., U.S.A.
