Diagnostic Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten two engine ground screws. Refer to "GROUND INSPECTION ".

    OK or NG

    1. OK : GO TO 2.
    2. NG : Repair or replace ground connections.

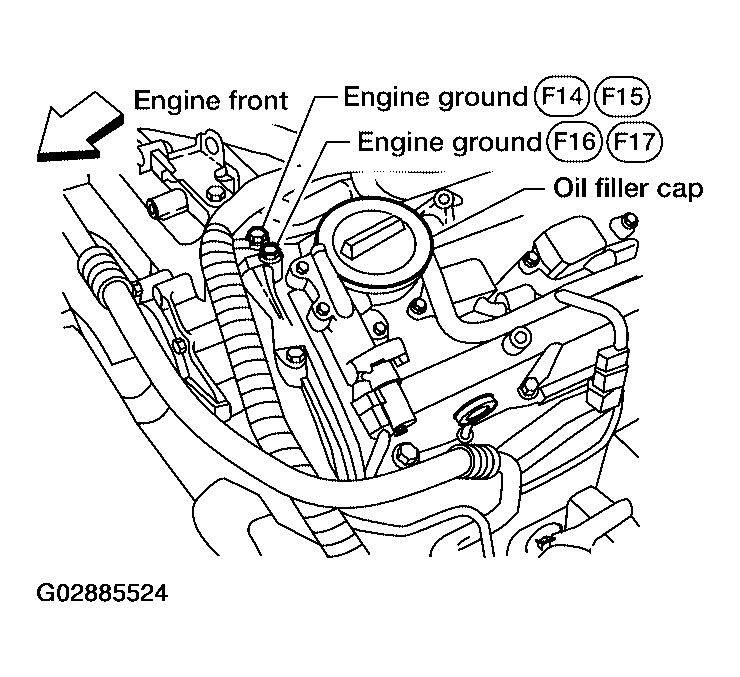

      Fig 1: Checking Engine Ground Connections
      G02885524Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY CIRCUIT
    1. Disconnect crankshaft position (CKP) sensor (POS) harness connector.

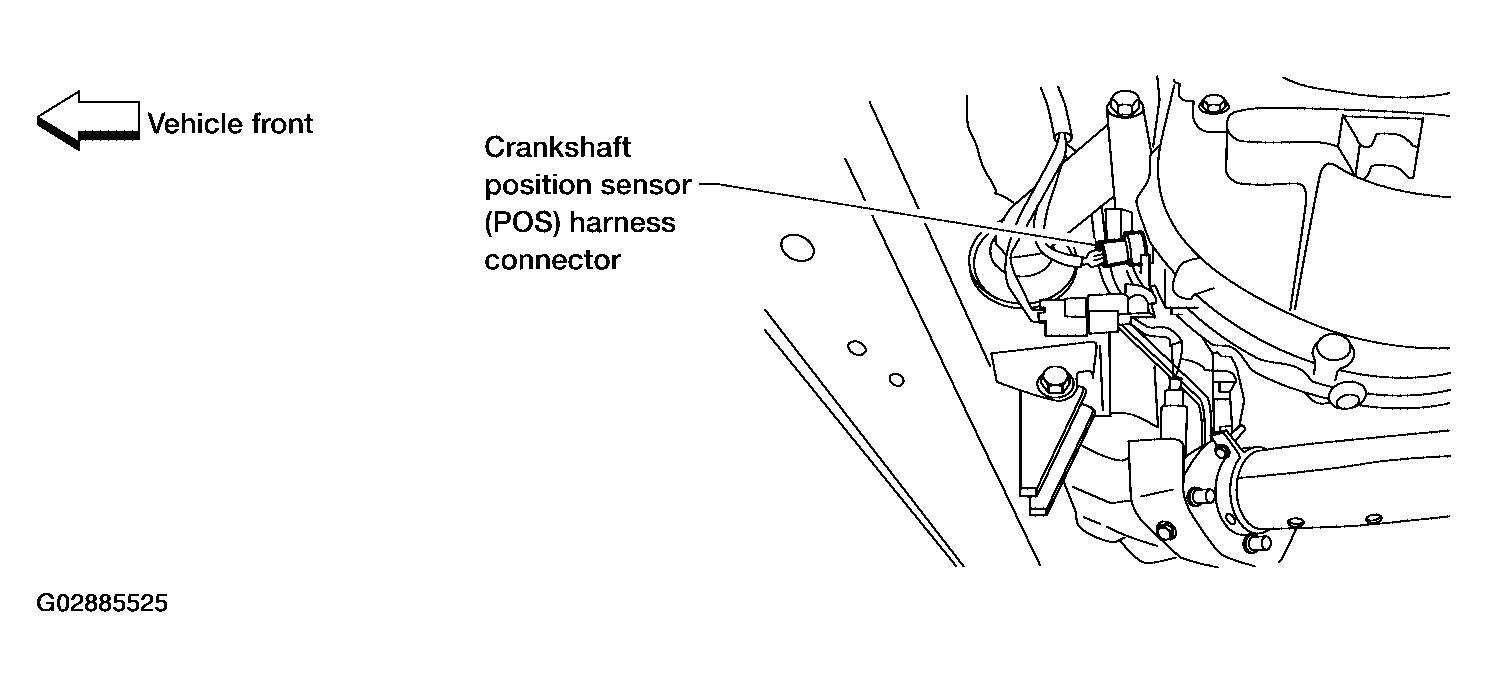

      Fig 2: Disconnecting Crankshaft Position Sensor (POS) Harness Connector
      G02885525Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Turn ignition switch ON.
    3. Check voltage between CKP sensor (POS) terminal 1 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO  4.
    2. NG : GO TO 3.

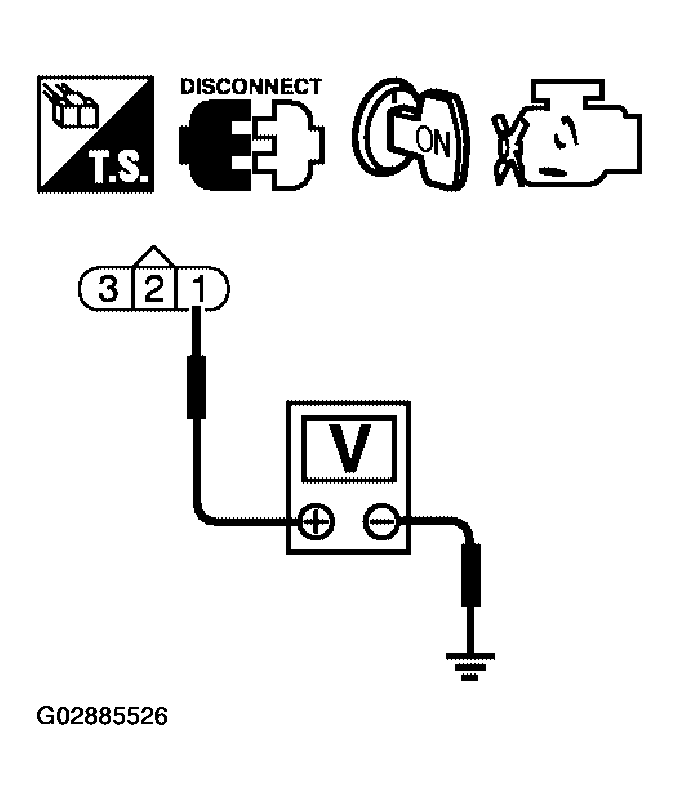

      Fig 3: Checking Voltage Between CKP Sensor (POS) Terminal 1 And Ground
      G02885526Courtesy of NISSAN MOTOR CO., U.S.A.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E20, F32
    • Harness for open or short between crankshaft position sensor (POS) and ECM
    • Harness for open or short between crankshaft position sensor (POS) and IPDM E/R
      1. : Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK CKP SENSOR (POS) GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between CKP sensor (POS) terminal 3 and ground. Refer to Wiring Diagram .

      Continuity should exist.

    3. Also check harness for short to power.

    OK or NG

    1. OK : GO TO 5.
    2. NG : Repair open circuit or short to power in harness or connectors.
  5. CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 95 and CKP sensor (POS) terminal 2.

      Refer to Wiring Diagram .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO 6.
    2. NG : Repair open circuit or short to ground or short to power in harness or connectors.
  6. CHECK CRANKSHAFT POSITION SENSOR (POS)

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK : GO TO 7.
    2. NG : Replace crankshaft position sensor (POS).
  7. CHECK GEAR TOOTH

    Visually check for chipping signal plate gear tooth.

    OK or NG

    1. OK : GO TO 8.
    2. NG : Replace the signal plate.
  8. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. : INSPECTION END
