Crankshaft Position Sensor (Pos)

WARNING: This page is about a different variant/trim than selected.

Loosen the fixing bolt of the sensor.
Disconnect crankshaft position sensor (POS) harness connector.
Remove the sensor.
Visually check the sensor for chipping.

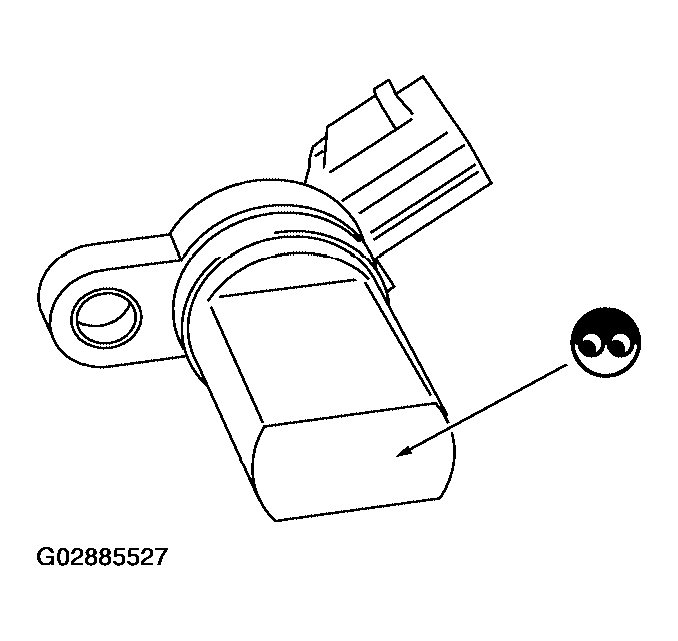

Fig 1: Identifying Crankshaft Position Sensor (POS)
Courtesy of NISSAN MOTOR CO., U.S.A.
Check resistance as shown in the figure.

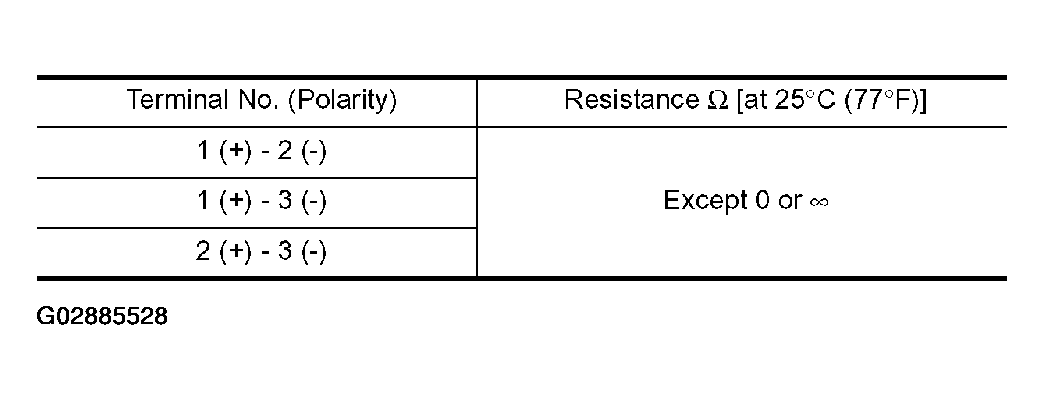

Fig 2: Resistance Table
Courtesy of NISSAN MOTOR CO., U.S.A.

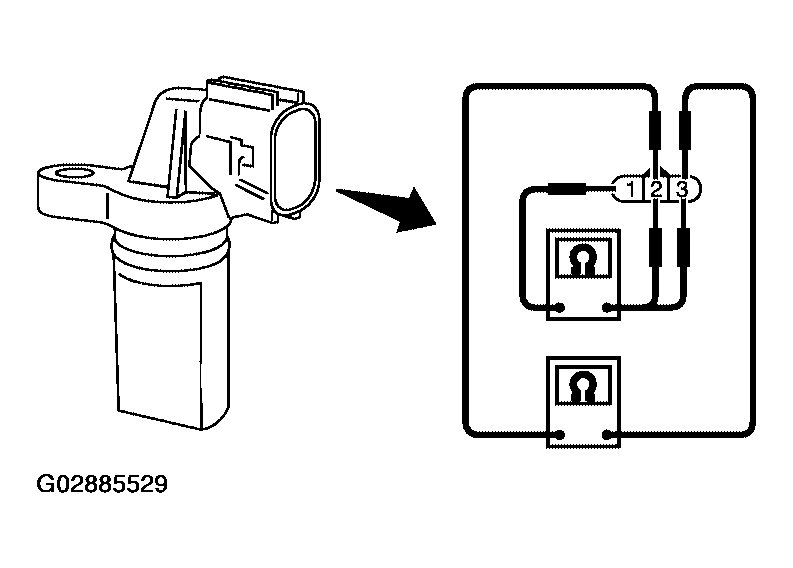

Fig 3: Checking Resistance Between Crankshaft Position Sensor (POS) Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
