Knock Sensor
WARNING: This page is about a different variant/trim than selected.

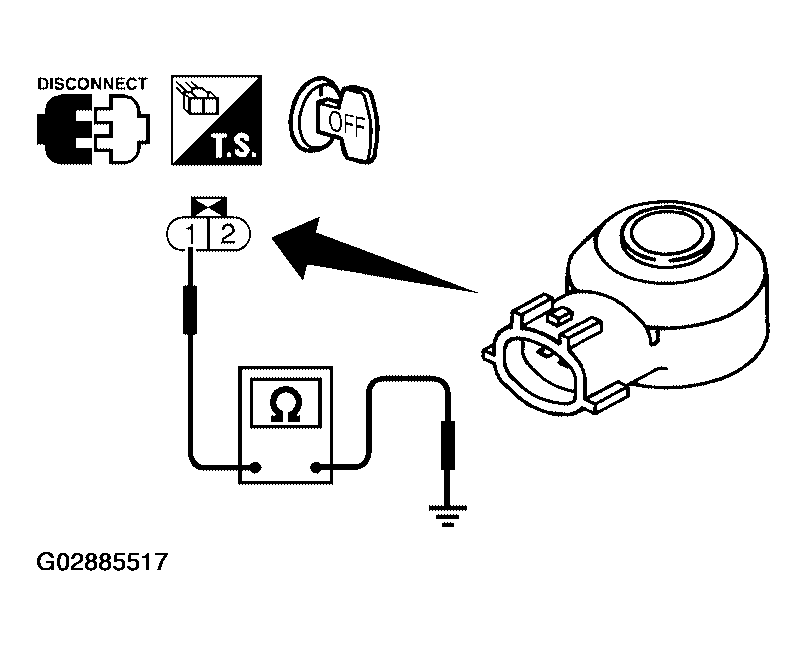

Check resistance between knock sensor terminal 1 and ground.
NOTE:
It is necessary to use an ohmmeter which can measure more than 10 MΩ.
Resistance: Approximately 532 - 588 kΩ [at 20°C (68°F)]
CAUTION:
Do not use any knock sensors that have been dropped or physically damaged. Use only new ones.
