Section 6 (Engine Control System - 3.5L)
>>
DTC P0171, P0174: Fuel Injection System Function
>>
Wiring Diagram
>>
Bank 2
Bank 2
WARNING:
This page is about a different variant/trim than selected.

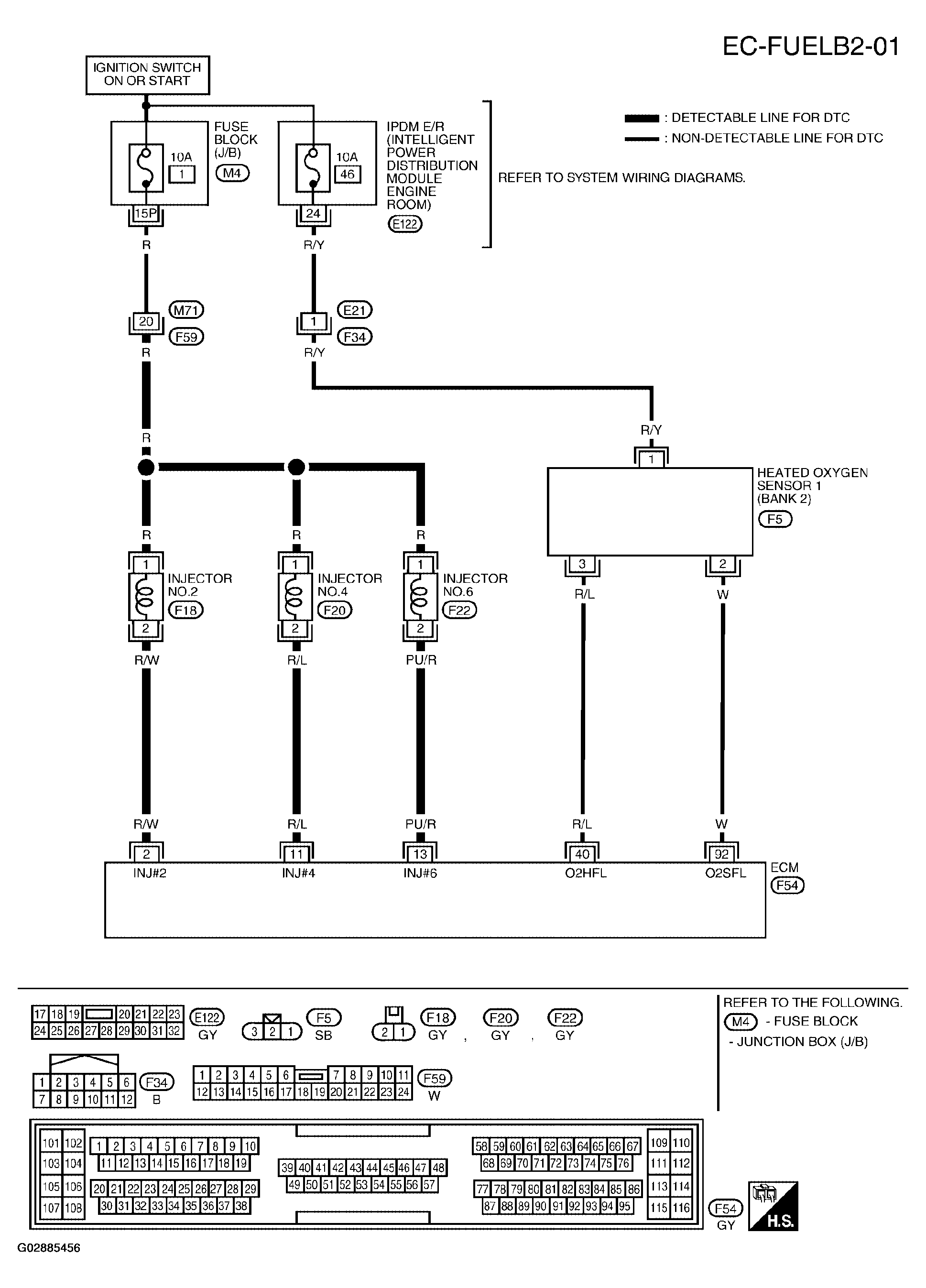

Fig 1: Wiring Diagram - EC-FUELB2-01
Courtesy of NISSAN MOTOR CO., U.S.A.
