With Consult-II

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
  2. Start engine and warm it up to the normal operating temperature.
  3. Turn ignition switch OFF and wait at least 10 seconds.
  4. Start engine and keep the engine speed between 3, 500 and 4, 000 RPM for at least 1 minute under no load.
  5. Let engine idle for 2 minutes.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

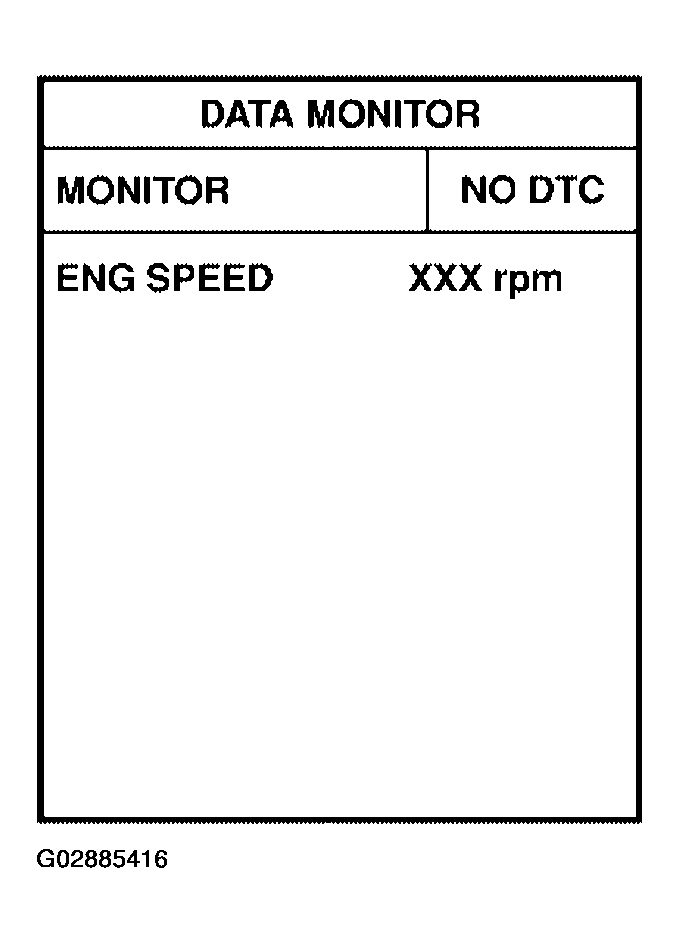

    Fig 1: Displaying DATA MONITOR Mode
    G02885416Courtesy of NISSAN MOTOR CO., U.S.A.
