On Board Diagnosis Logic

To judge the malfunction of heated oxygen sensor 1, this diagnosis measures response time of heated oxygen sensor 1 signal. The time is compensated by engine operating (speed and load), fuel feedback control constant, and heated oxygen sensor 1 temperature index. Judgment is based on whether the compensated time (heated oxygen sensor 1 cycling time index) is inordinately long or not.

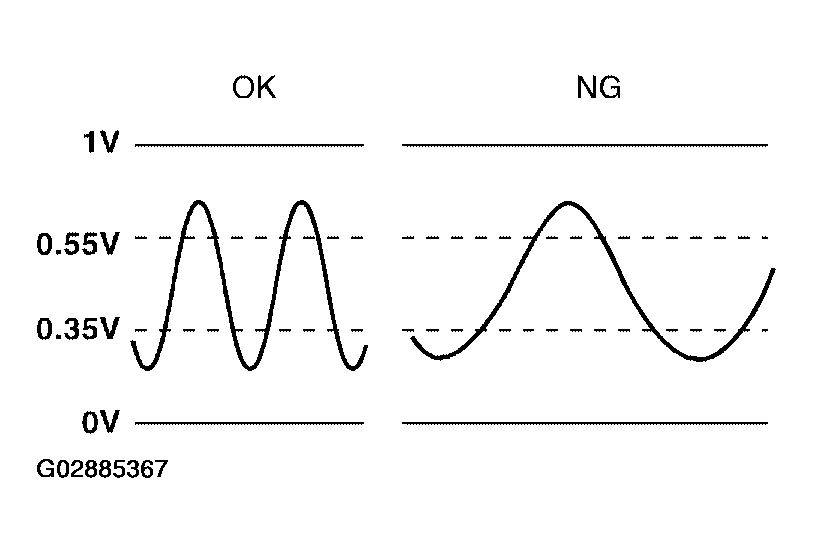

Fig 1: Heated Oxygen Sensor Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

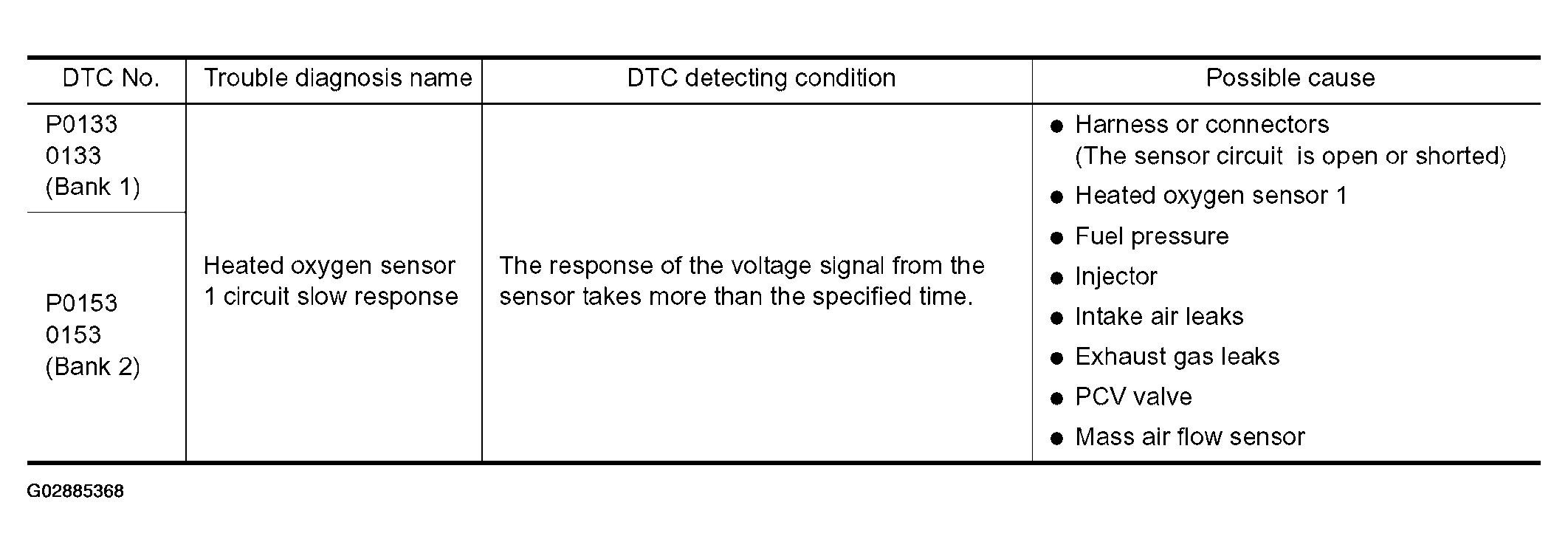

Fig 2: DTC Condition Detection Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
