With Consult-II

WARNING: This page is about a different variant/trim than selected.
  1. Start engine and warm it up to normal operating temperature.
  2. Stop engine and wait at least 10 seconds.
  3. Turn ignition switch ON and select "HO2S1 (B1) P0133" or "HO2S1 (B2) P0153" of "HO2S1" in "DTC WORK SUPPORT" mode with CONSULT-II.
  4. Touch "START".
  5. Start engine and let it idle for at least 3 minutes.
    NOTE: Never raise engine speed above 3, 600 RPM after this step. If the engine speed limit is exceeded, return to step  5.

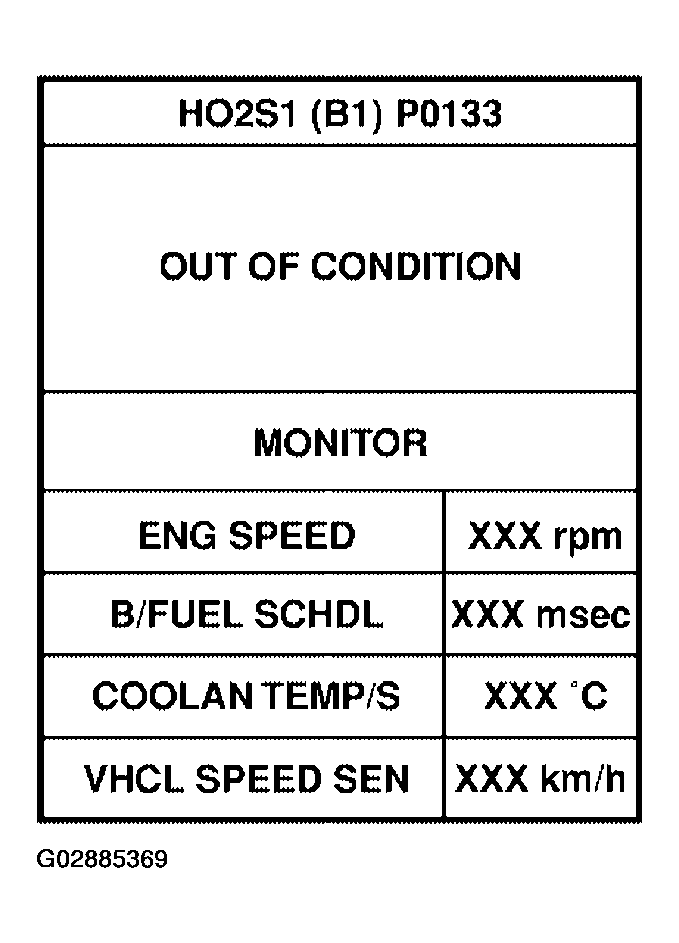

    Fig 1: Displaying "HO2S1 (B1) P0133" Mode
    G02885369Courtesy of NISSAN MOTOR CO., U.S.A.
  6. When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take approximately 20 to 50 seconds.)
    ENG SPEED SPECIFICATION

    ENG SPEED 1, 200 - 3, 100 RPM
    Vehicle speed More than 80 km/h (50 MPH)
    B/FUEL SCHDL 2.5 - 12.0 msec
    Selector lever Suitable position

    If "TESTING" is not displayed after 5 minutes, retry from step   2 .

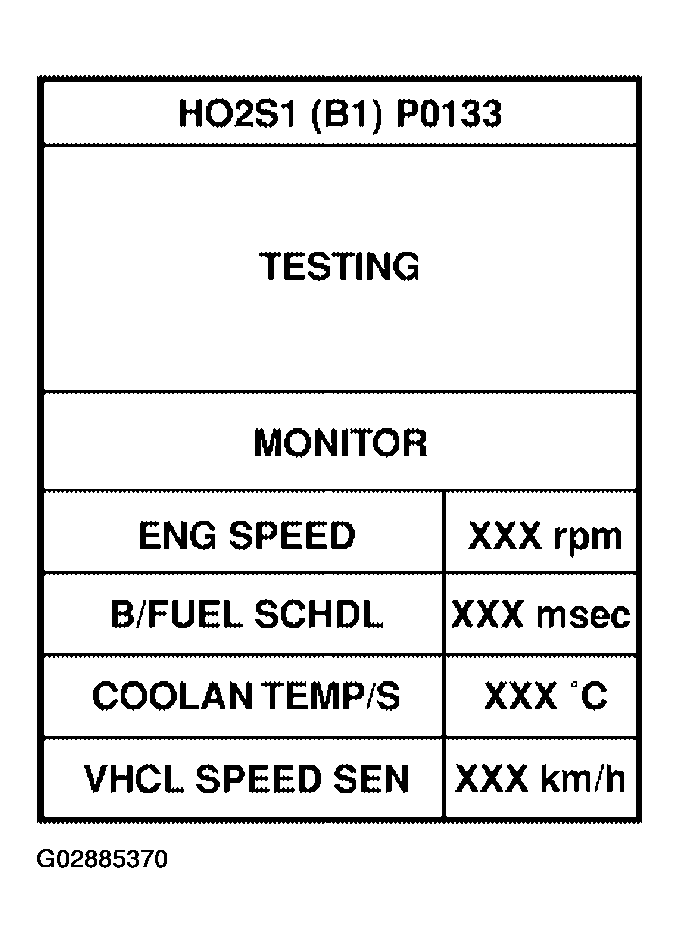

    Fig 2: Displaying "TESTING" Mode
    G02885370Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".

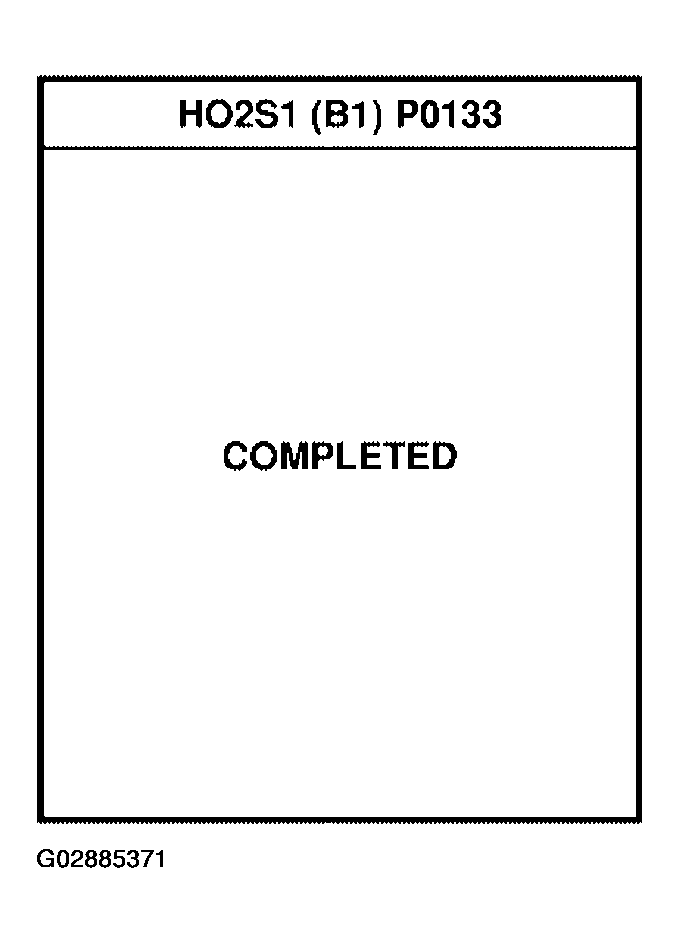

    Fig 3: Displaying "HO2S1 (B1) P0133" Mode
    G02885371Courtesy of NISSAN MOTOR CO., U.S.A.
