On Board Diagnosis Logic

To judge the malfunction, the diagnosis checks that the heated oxygen sensor 1 output is not inordinately high.

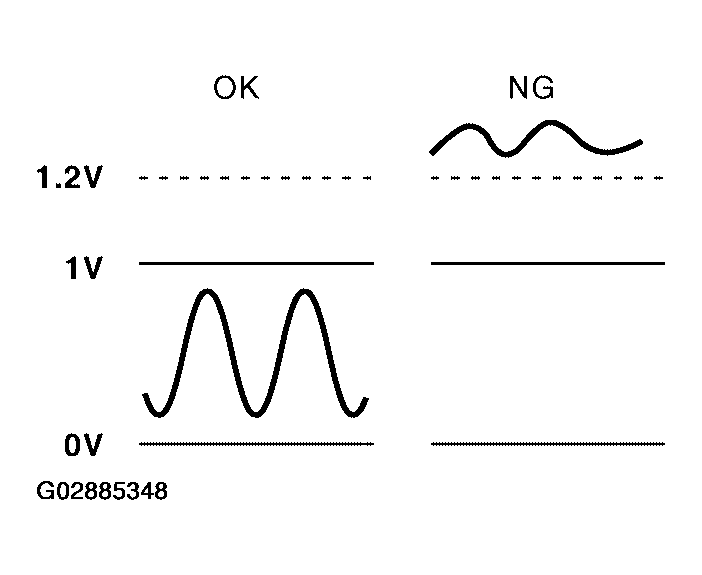

Fig 1: Heated Oxygen Sensor Voltage Map

Courtesy of NISSAN MOTOR CO., U.S.A.

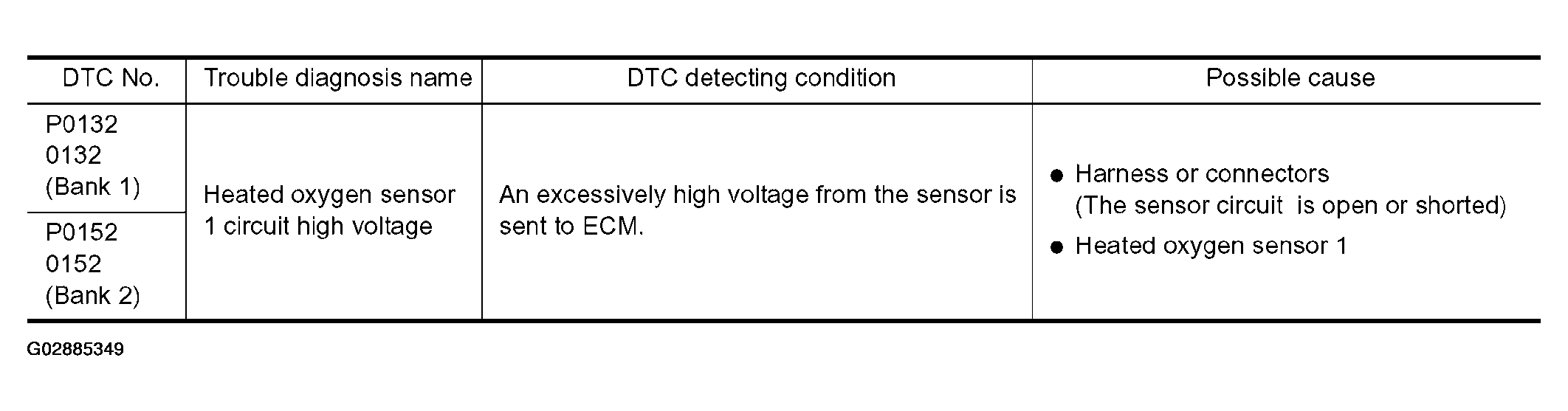

Fig 2: DTC Condition Detection Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
