With Consult-II

WARNING: This page is about a different variant/trim than selected.
  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Turn ignition switch ON.
  4. Select "DATA MONITOR" mode with CONSULT-II.
  5. Restart engine and let it idle for 2 minutes.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

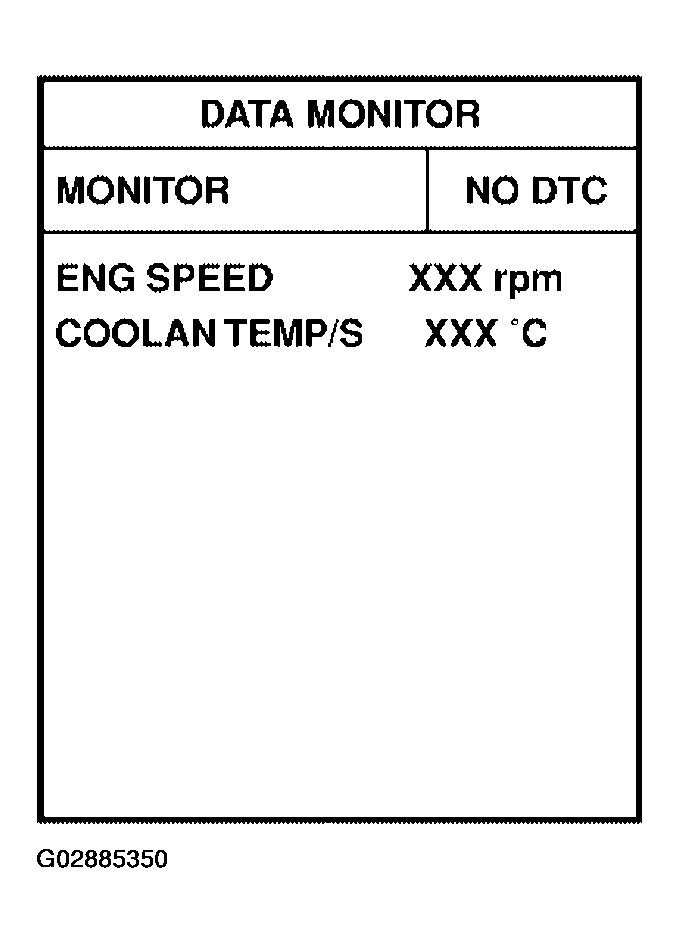

    Fig 1: Displaying DATA MONITOR Mode
    G02885350Courtesy of NISSAN MOTOR CO., U.S.A.
