Fail-Safe Mode

WARNING: This page is about a different variant/trim than selected.

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

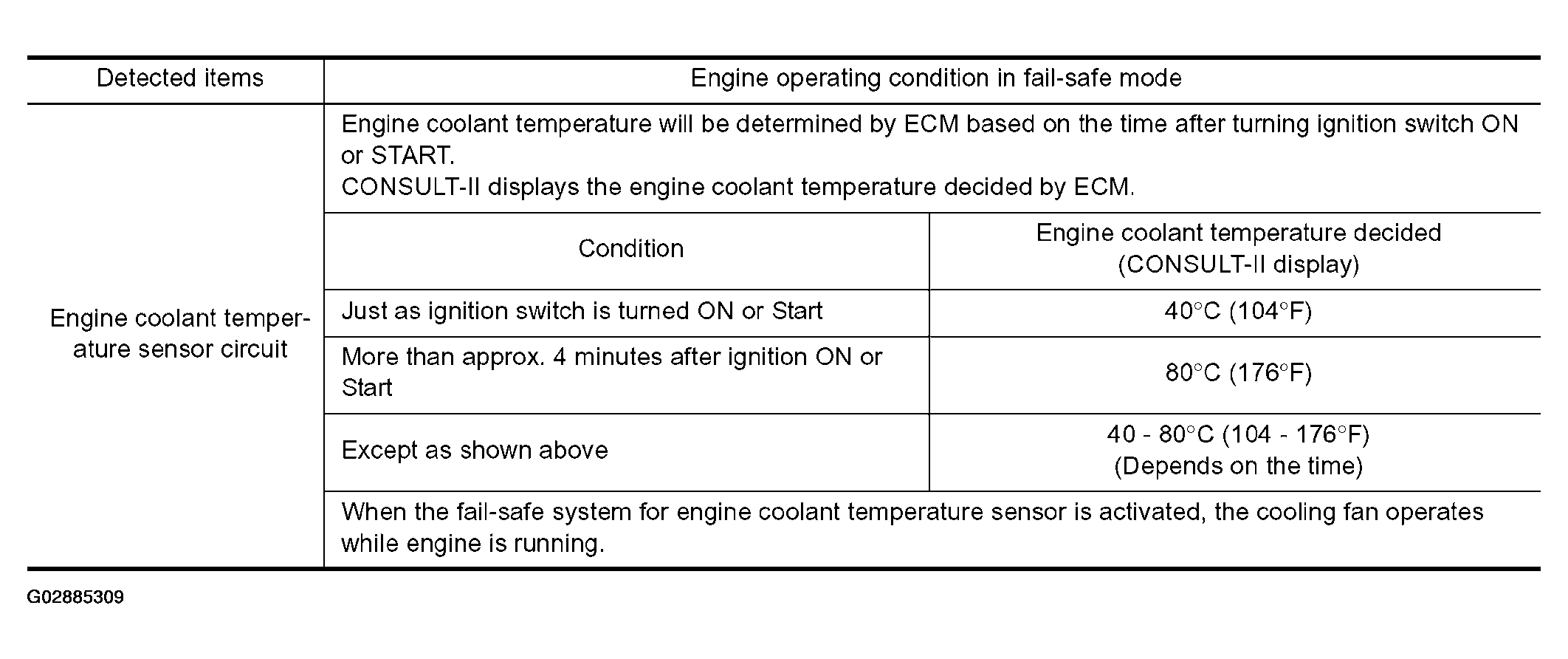

Fig 1: Fail-Safe Mode Chart
G02885309Courtesy of NISSAN MOTOR CO., U.S.A.
