With CONSULT-II

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and wait 5 seconds at most.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

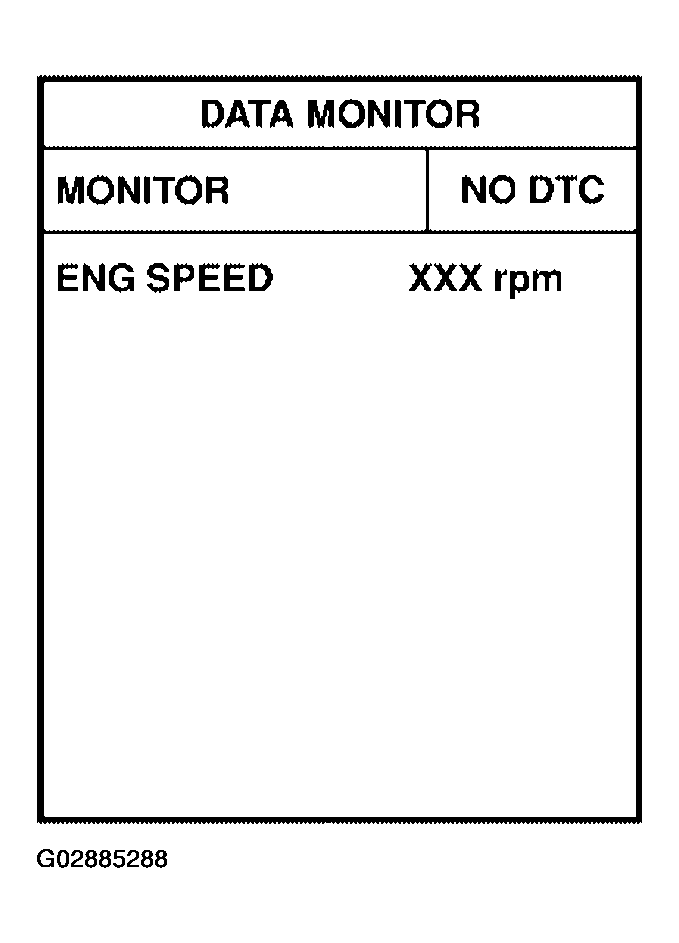

    Fig 1: Displaying DATA MONITOR Mode
    G02885288Courtesy of NISSAN MOTOR CO., U.S.A.
