On Board Diagnosis Logic

WARNING: This page is about a different variant/trim than selected.

This self-diagnosis has the one trip detection logic.

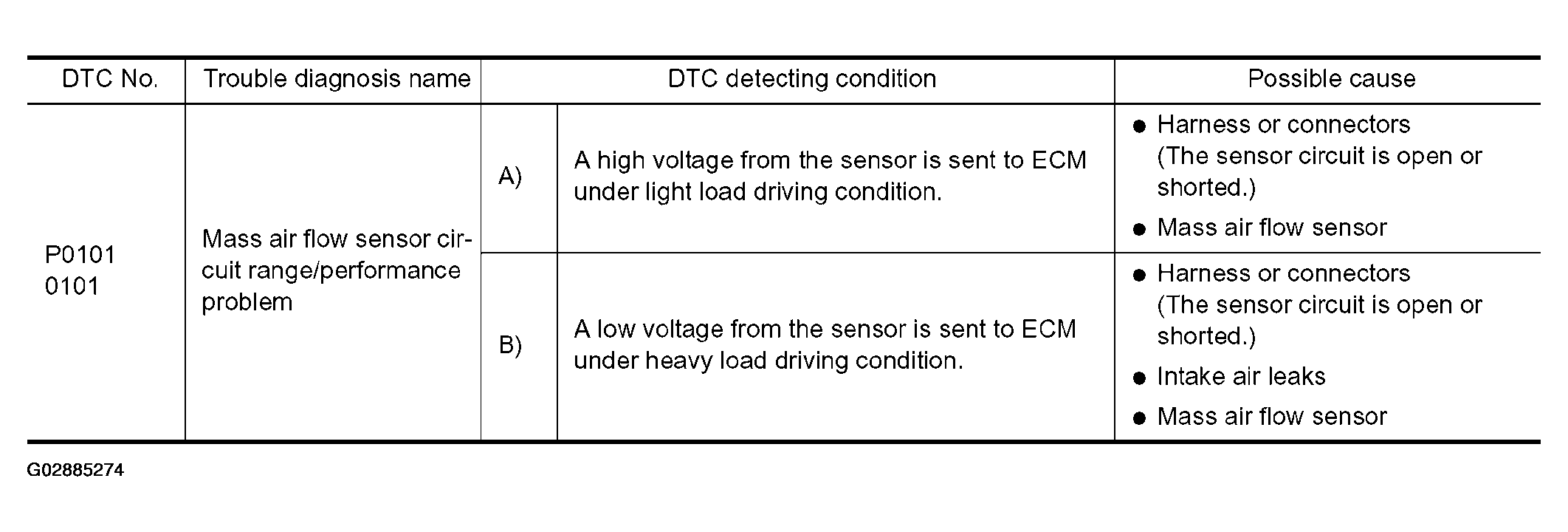

Fig 1: DTC Condition Detection Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
