System Description
WARNING: This page is about a different variant/trim than selected.
Courtesy of NISSAN MOTOR CO., U.S.A.

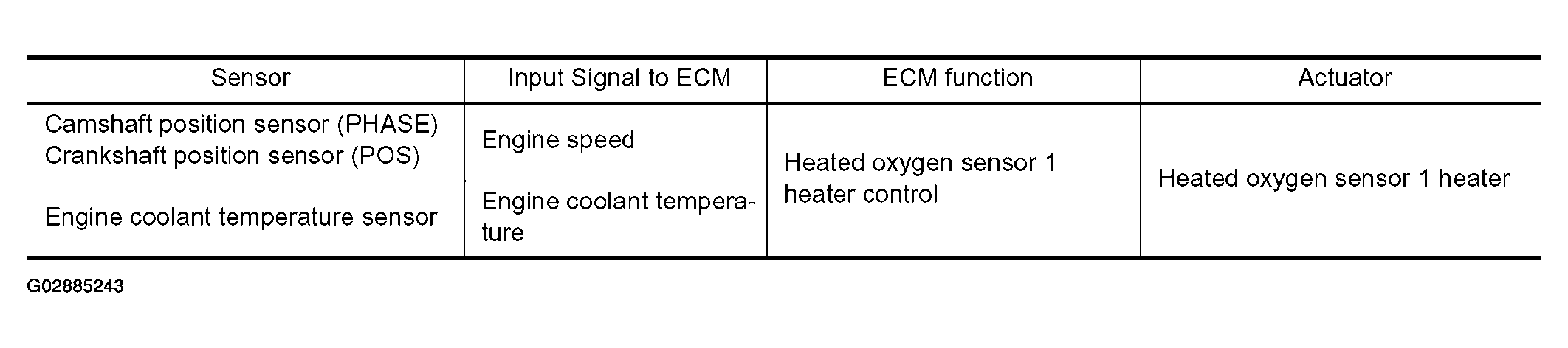

The ECM performs ON/OFF control of the heated oxygen sensor 1 heater corresponding to the engine speed and engine coolant temperature. The duty percent varies with engine coolant temperature when engine is started.
