With Consult-II

WARNING: This page is about a different variant/trim than selected.
  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
  4. Start engine and run it for at least 6 seconds at idle speed.
  5. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

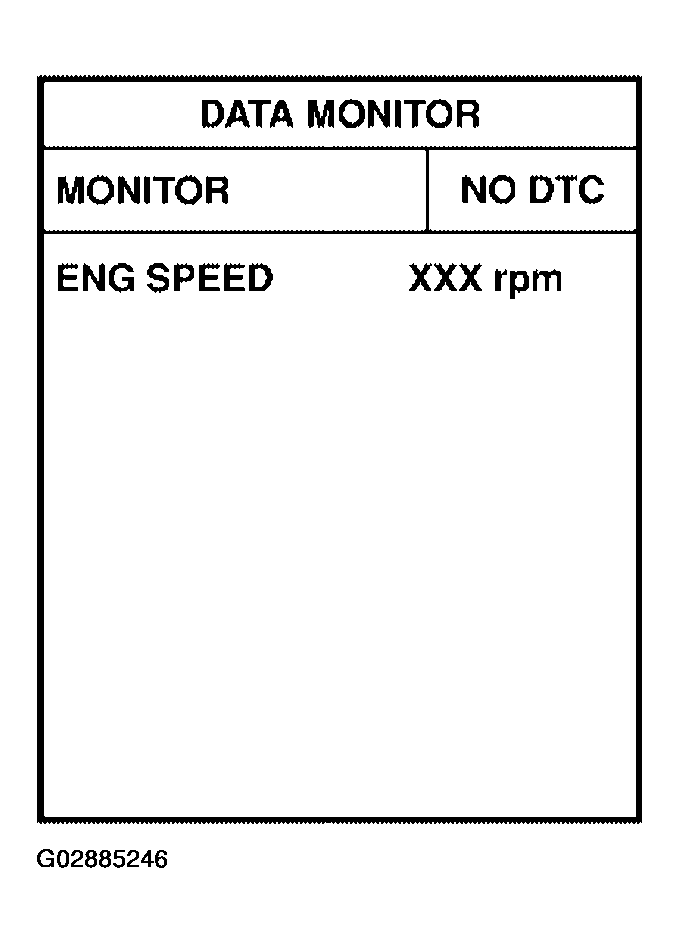

    Fig 1: Displaying DATA MONITOR Mode
    G02885246Courtesy of NISSAN MOTOR CO., U.S.A.
