Section 6 (Engine Control System - 3.5L)
>>
DTC P0011, P0021: IVT Control
>>
On Board Diagnosis Logic
>>
Notes
On Board Diagnosis Logic: Notes
WARNING:
This page is about a different variant/trim than selected.

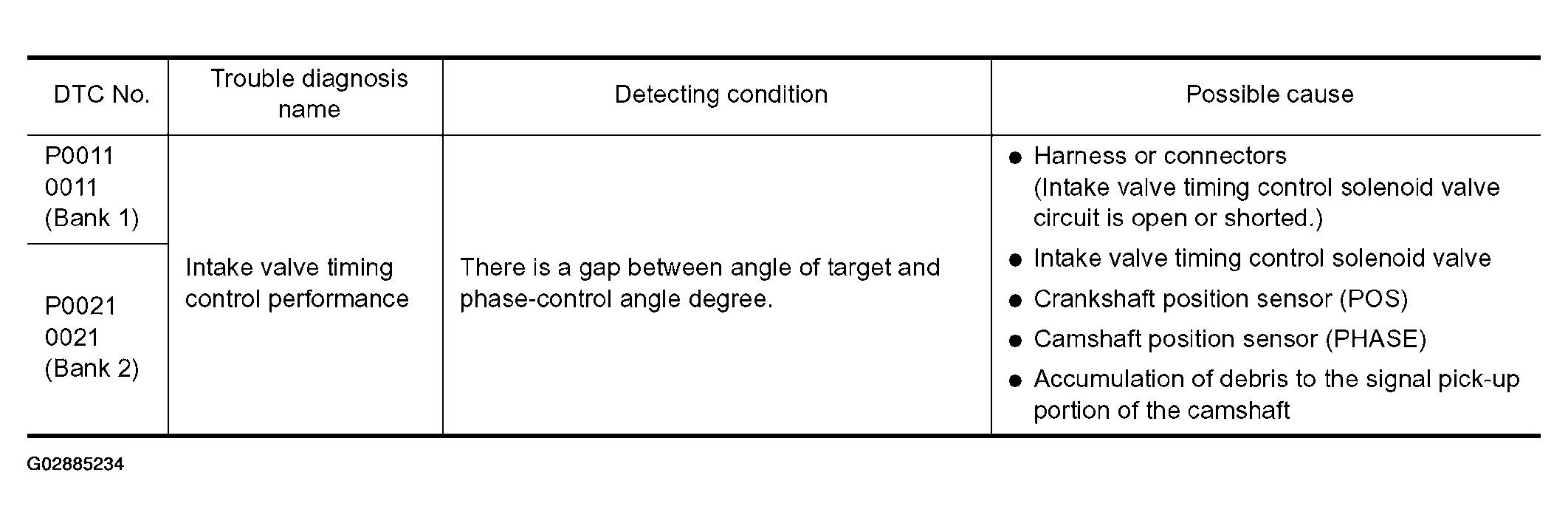

Fig 1: Trouble Diagnosis Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
